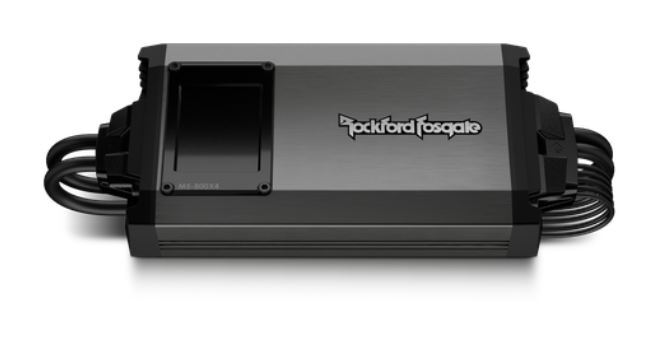

Rockford Fosgate 800 Watt 4-Channel M5 Element Ready Amplifier

The M5-800X4 amplifier features Element Ready design from Rockford Fosgate that’s built as rugged as the outdoor environment. The IPX6 rating is provided by splash guards on both ends and heavy-duty molded harnesses with integral sealing gaskets. A new PRESET switch - for use with Rockford Fosgate UTV / Side-by-Side / SxS audio kits - eliminates the need to set-up and tune the amp for the best experience possible. Built on the popular TM series, M5 amplifiers feature the same great technologies like Constant Power, Class-AD and C.L.E.A.N.

Two amplifier power ratings, the traditional Continuous Power output, and the new Dynamic Power output, both tested in accordance with the CTA-2006 specification. Consider Continuous Power as wattage developed on the test bench for comparison against other amplifiers in the same class, and Dynamic Power as real-world wattage when connected to a speaker load, listening to music.

Features:

• Element Ready design with integrated harness and panel seals
• PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
• C.L.E.A.N. input/output clip detection and indicator LEDs
• Constant Power provides instantaneous delivery of output over varying impedance loads
• Top mounted control panel with Element Ready smoked lens cover
• Low Impedance Stability
• Proprietary testing using RATS (Rockford Automated Testing System)
• Proprietary Class-AD technology allows amplifier to produce more power with less current draw
• Discrete Surface Mount technology utilizes 1% tight-tolerances for high efficiency and reduced cross-talk
• MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
• Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
• Balanced Differential Inputs eliminates noise picked up by signal cables
• Remote-Out feature when using high level inputs

Specifications:

• CEA-2006 Compliant / Cta-2006 Compliant
• Number of Channels 4
• Total Power (Sum of Rated Power)800 Watts
• CTA-2006 Continuous Power Rating 100 Watts x 4 @ 4Ω / 100 Watts x 4 @ 2Ω / 200 Watts x 2 @ 4Ω Bridged/Mono ≤1.0% THD+N
• CTA-2006 Dynamic Power Rating 125 Watts x 4 @ 4Ω / 200 Watts x 4 @ 2Ω / 400 Watts x 2 @ 4Ω Bridged/Mono
• Bridgeable Yes
• Frequency Response 10 Hz - 50 kHz
• Input Sensitivity 150mVrms - 12Vrms
• Circuit Topology Class Class-AD
• Efficiency (average) >75%
• Total Harmonic Distortion (THD+Noise) <0.25% THD+N @ 1 Watt
• Signal Input Low-Level: 4 RCA
• High-Level: (2) 4-Pin Molex
• Tone Controls Front/Rear: 0-14dB @ 12.5kHz / Front/Rear: 0-18dB @ 45Hz
• Crossover Controls High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
• All-Pass: Yes
• Remote Controls No
• Visual Indicators Power: Blue / Protect: Red / Input Clip: Red / Output Clip: Blue/Red
• Power Wire Gauge 8 AWG
• Power Input Connector Compression Terminal Block
• Speaker Wire Gauge 16 AWG
• Speaker Output Connector 4-Pin Molex
• Cooling Convection
• Heatsink Extruded Aluminum
• Operating Voltage 9 - 16 VDC
• Max. Current Draw (13.8V Sinewave) 55 A @ 4Ω / 85 A @ 2Ω / 90 A @ 4Ω Bridged
• Dimensions (H x W x D) 1.7" x 4.25" x 8.41" (42.8 mm x 108 mm x 213 mm)
