Rockford Fosgate

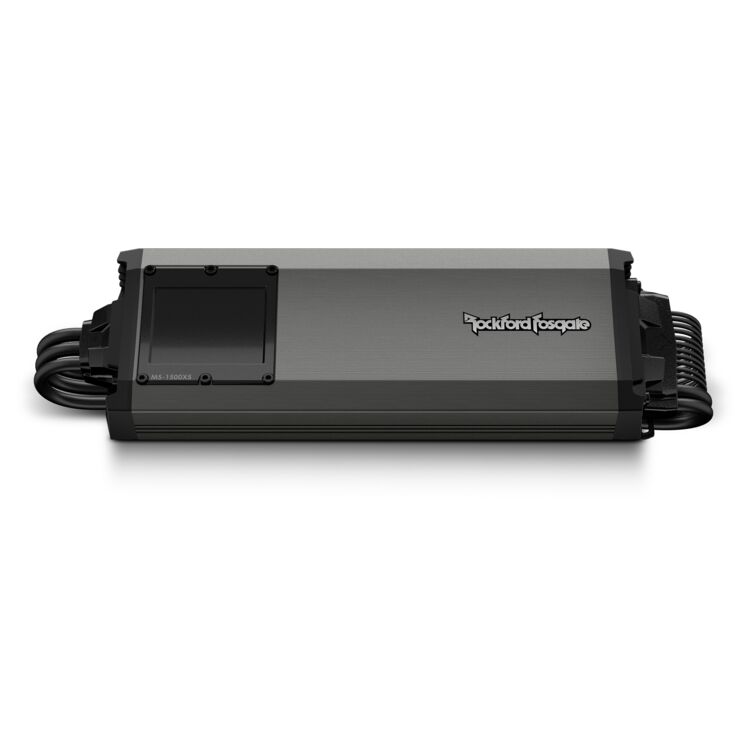

Rockford Fosgate 1500 Watt 5-Channel M5 Element Ready Amplifier

Item: P921676
0 Read 0 Reviews Write a Review

The M5-1500X5 amplifier features Element Ready design from Rockford Fosgate that’s built as rugged as the outdoor environment. The IPX6 rating is prov… Read More

$929.99
Rebate Available! View Details

Product Details

Rockford Fosgate 1500 Watt 5-Channel M5 Element Ready Amplifier

The M5-1500X5 amplifier features Element Ready design from Rockford Fosgate that’s built as rugged as the outdoor environment. The IPX6 rating is provided by splash guards on both ends and heavy-duty molded harnesses with integral sealing gaskets. A new PRESET switch - for use with Rockford Fosgate UTV / Side-by-Side / SxS audio kits - eliminates the need to set-up and tune the amp for the best experience possible. Built on the popular TM series, M5 amplifiers feature the same great technologies like Constant Power, Class-AD/BD and C.L.E.A.N.

Two amplifier power ratings, the traditional Continuous Power output, and the new Dynamic Power output, both tested in accordance with the CTA-2006 specification. Consider Continuous Power as wattage developed on the test bench for comparison against other amplifiers in the same class, and Dynamic Power as real-world wattage when connected to a speaker load, listening to music.

Features:

  • Element Ready design with integrated harness and panel seals
  • PRESET removes the need to set-up and tune the amp when used with Rockford Fosgate UTV audio kits
  • C.L.E.A.N. input/output clip detection and indicator LEDs
  • Constant Power provides instantaneous delivery of output over varying impedance loads
  • Top mounted control panel with Element Ready smoked lens cover
  • Low Impedance Stability
  • Proprietary testing using RATS (Rockford Automated Testing System)
  • Proprietary Class-AD technology allows amplifier to produce more power with less current draw
  • Class-BD technology provides 75-80% efficiency over traditional class A/B designs
  • Discrete Surface Mount technology utilizes 1% tight-tolerances for high efficiency and reduced cross-talk
  • MESHA 4 reduces MOSFET temps, lowers distortion, increases durability and prolongs device life span
  • Chassis Isolation from mounting points greatly reduces possible introduction of vehicle noise
  • Balanced Differential Inputs eliminates noise picked up by signal cables
  • Remote-Out feature when using high level inputs

Specifications:

  • CEA-2006 Compliant / Cta-2006 Compliant
  • Number of Channels 5
  • Total Power (Sum of Rated Power) 1500 Watts
  • CTA-2006 Continuous Power Rating 100 Watts x 4 @ 4Ω / 100 Watts x 4 @ 2Ω / 200 Watts x 2 @ 4Ω Bridged/Mono ≤1.0% THD+N
  • CTA-2006 Dynamic Power Rating 125 Watts x 4 @ 4Ω / 200 Watts x 4 @ 2Ω / 400 Watts x 2 @ 4Ω Bridged/Mono
  • Bridgeable Yes
  • Frequency Response 10 Hz - 50 kHz
  • Input Sensitivity 150mVrms - 12Vrms
  • Circuit Topology Class-AD (front/rear channels) / Class-BD (sub channel)
  • Efficiency (average) >75%
  • Total Harmonic Distortion (THD+Noise) <0.2% THD+N @ 1 Watt
  • Signal Input Low-Level: 2 RCA
  • High-Level: 4-Pin Molex
  • Tone Controls Front/Rear: 0-14dB @ 12.5kHz / Front/Rear: 0-18dB @ 45Hz / Sub: 0-18dB @ 45 Hz
  • Crossover Controls High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth / Infrasonic: 30 Hz @ 12dB/Octave Butterworth
  • Remote Controls No
  • Visual Indicators Power: Blue / Protect: Red / Input Clip: Red / Output Clip: Blue/Red
  • Power Wire Gauge 4 AWG
  • Power Input Connector Compression Terminal Block
  • Speaker Wire Gauge 16 AWG
  • Speaker Output Connector 4-Pin Molex
  • Cooling Convection
  • Heatsink Extruded Aluminum
  • Operating Voltage 9 - 16 VDC
  • Max. Current Draw (13.8V Sinewave) 90 A @ 4Ω/4Ω / 140 A @ 2Ω/2Ω / 170 A @ 2Ω/1Ω / 150 A @ 4Ω Bridged
  • Dimensions (H x W x D) 1.7" x 4.25" x 12.3" (42.8 mm x 108 mm x 311.4 mm)
Product Style RevZilla Item # Store Sku MFR. Product # Availability
Product Style Rockford Fosgate 1500 Watt 5-Channel M5 Element Ready Amplifier RevZilla Item #10090368 Store Sku MFR. Product #M5-1500X5 AvailabilityOut of Stock
Fitment Notes & Exceptions
This is a universal fit part; it may or may not fit without modification.
