Weigh Safe Drop Hitch With Built-In Scale 2" Shank

You found it. The one and only. The original. The Weigh Safe Drop Hitch is THE trailer hitch with a built-in scale that helps you dial-in an optimal tongue weight. The result is a much safer and enjoyable towing experience - all while reducing wear and damage risk to tires, wheel bearings, suspension components and drivetrain of both trailer and tow vehicle.

With Weigh Safe’s built-in scale, measuring your tongue weight is as easy as coupling your trailer to your ball mount. Hook-up your trailer to the Weigh Safe ball mount just as you would any other ball mount, and your trailer's weight will push down on the hitch ball. Then, an internal hydraulic piston presses down on a reservoir of oil, which then sends a reading the the hitch's built-in scale. The Weigh Safe gauge accuracy is an impressive 1.25% +/- (50lb +/-) over the full weight range of the scale.

Specifications:

  • 2" Receiver size (shank)
  • Max gross trailer weight (all models):
    • 7500 lbs with 1-7/8” ball
    • 8000 lbs with 2” ball
    • 12,500 lbs with 2-5/16” ball
  • Max tongue weight (all models):
    • 1500 lbs
  • V5 & J684 certified
  • Drop hitch adjustment: 1" increments
  • Ball material: Stainless steel
  • Pin: Dual pin with key lock assembly (included)
  • Rise: All hitches may be used in rise position
    • Gain 1 inch (e.g., 4” drops are 5” rises)
  • Total Height: Add 3 inches (e.g., 4” drops measure 7" from the top of the receiver to the hitch base)

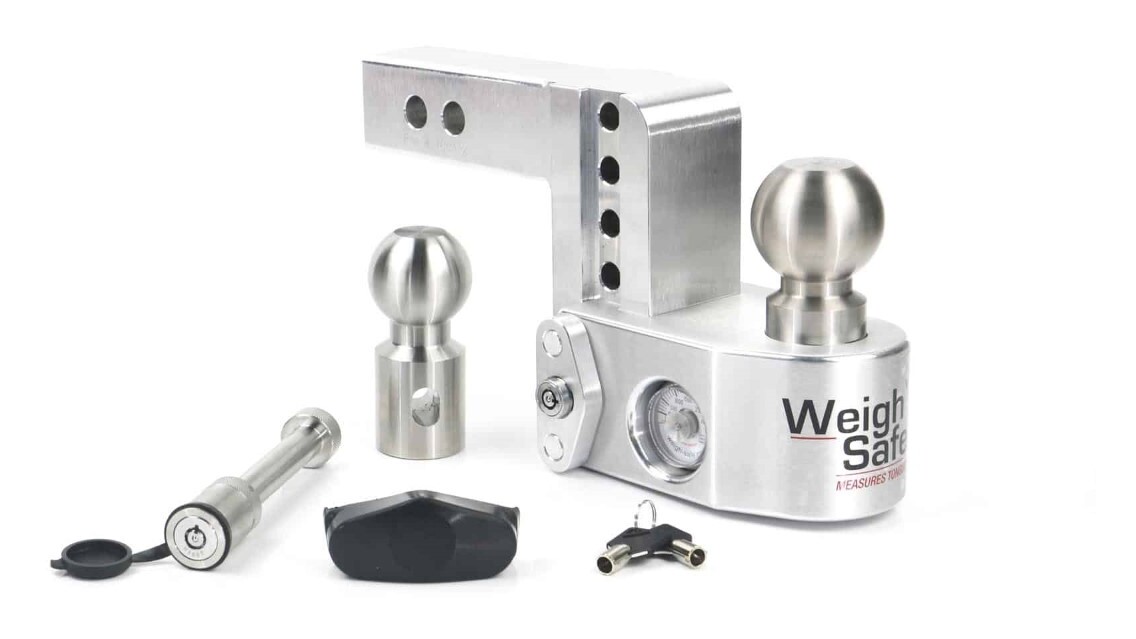

Includes:

  • Drawbar
  • Slider with built-in scale
  • 2" Tow ball (stainless steel)
  • 2-5/16" Tow ball (stainless steel)
  • Ball retaining pin (1)
  • Lock plate key assembly
  • Dust lock cover
  • Barrel style keys (2)
  • Optional locking hitch pin Part # WS05 (keyed to match locking plate; select models)

Features:

  • Premium drop hitch with integrated tongue weight scale
  • 6061 T6 billet aluminum shank and mounting platform provide superior strength and durability
  • Solid block construction provides greater strength than hollow steel competitors
  • Rustproof
  • Lighter than steel
  • Accuracy of 1.25% +/- (50lb +/-) over the full weight range of scale
Made in the USA
Product Style RevZilla Item # Store Sku MFR. Product # Availability
Product Style 12.5K Hitch | 1500 lb. TW / 8" Drop RevZilla Item #10375129 Store Sku MFR. Product #WS8-2 AvailabilityOnly 3 Left: Ships next business day
Product Style 12.5K Hitch | 1500 lb. TW / 6" Drop w/ Locking Pin RevZilla Item #10375130 Store Sku MFR. Product #WS6-2-KA AvailabilityIn Stock: Ships next business day
Product Style 12.5K Hitch | 1500 lb. TW / 6" Drop RevZilla Item #10375131 Store Sku MFR. Product #WS6-2 AvailabilityOnly 1 Left: Ships next business day
Product Style 12.5K Hitch | 1500 lb. TW / 4" Drop w/ Locking Pin RevZilla Item #10375132 Store Sku MFR. Product #WS4-2-KA AvailabilityOnly 2 Left: Ships next business day
Product Style 12.5K Hitch | 1500 lb. TW / 4" Drop RevZilla Item #10375133 Store Sku MFR. Product #WS4-2 AvailabilityOnly 2 Left: Ships next business day
