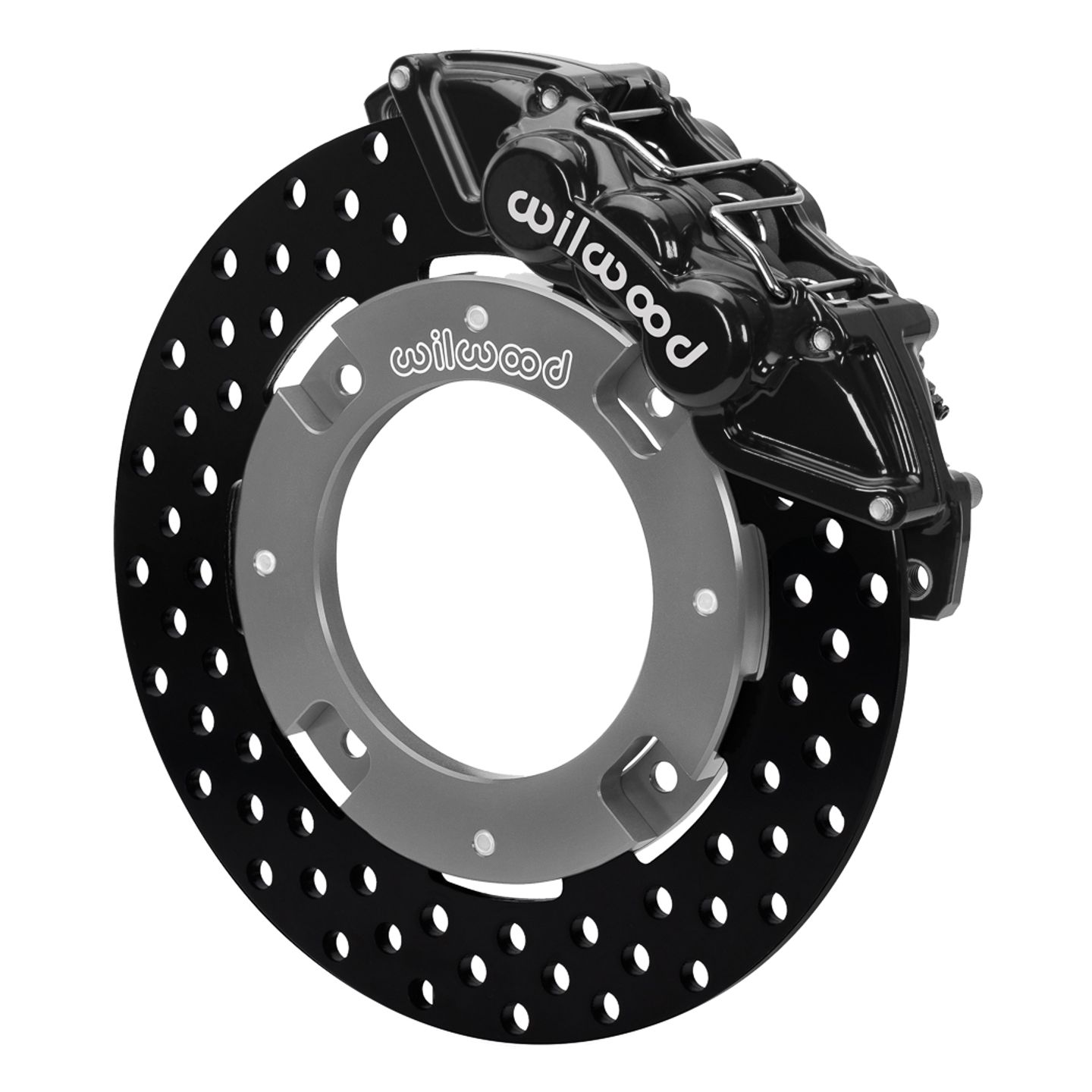

Wilwood Big Brake Kit Can-Am Maverick X3 / X3 MAX 2017-2024

Wilwood Big Brake Kit Can-Am Maverick X3 / X3 MAX

Wilwood Big Brake Kit features dynamically-mounted rotors and upgraded calipers your UTV / Side-by-Side. This kit features fixed mount multi-piston calipers with greater clamping force over stock, and larger diameter floating rotors for more brake torque and a harder bite, improving braking on higher-powered UTVs. Built with forged aluminum differential-bore four or six piston calipers reduce deflection and provide more uniform engagement to increase braking force and improve feel so you avoid that squishy pedal. The high-friction steel rotors, are up to 20% greater in diameter and thicker for less distortion and the dynamic mounting reduce thermal stress and prevent piston knockback from rough terrain.

Features:

• Dynamically-mounted rotors
• Fixed mount multi-piston calipers
• Forged aluminum differential-bore four and six piston calipers
• High-friction steel rotors
• Black Electro Coat rotor surface finish
• Powder coated calipers for durability
• Includes BP-10 medium friction pads
• Minimum required wheel diameter of 14 Inches
• Sold as a pair (front set and back set sold separately)

Includes:

• 2 Forged aluminum differential-bore calipers
• 2 Larger diameter floating rotors
• 2 sets of brake pads
• Mounting hardware

Specifications:

• Front Calipers
  • Piston Count: 6
  • Piston 1 Bore (in): 1.12
  • Piston 2 Bore (in): 1.12
  • Piston 3 Bore (in): 1.00
  • Piston Area (In2): 2.27
  • Piston Type: Stainless
  • Mount Type: Lug
  • Brake Pad Plate: 7812
  • Brake Pad Area (In2): 6.36
  • Brake Pad Volume (In3): 2.1
  • Pad Compound: BP-10
• Front Rotors
  • Surface Finish: Black Electro Coat
  • Material: Steel
  • Outside Diameter (in): 11.25
  • Width (in): 0.25
  • Vane Count: Solid
  • Design Type: Solid
  • Bedded: No
  • Dynamically Balanced: No
• Rear Calipers
  • Piston Count: 4
  • Piston 1 Bore (in): 1.12
  • Piston 2 Bore (in): 1.12
  • Piston 3 Bore (in): 0
  • Piston Area (In2): 1.98
  • Piston Type: Stainless
  • Mount Type: Lug
  • Brake Pad Plate: 7812
  • Brake Pad Area (In2): 6.36
  • Brake Pad Volume (In3): 2.1
  • Pad Compound: BP-10
• Rear Rotors
  • Surface Finish: Black Electro Coat
  • Material: Steel
  • Outside Diameter (in): 11.25
  • Width (in): 0.25
  • Vane Count: Solid
  • Design Type: Solid
  • Bedded: No
  • Dynamically Balanced: No
