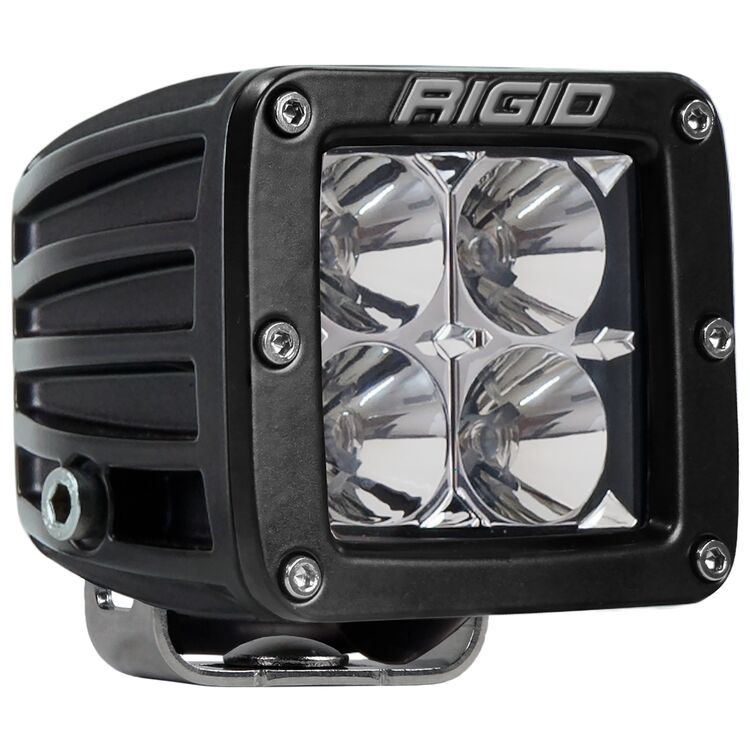

Rigid D-Series Pro LED Standard Mount Light (3")

Rigid D-Series Pro LED Standard Mount Light

The Rigid D-Series LED Light Pods have always been the most versatile compact lighting package on the market. The "Pro" in D-Series Pro stands for "professional": greater light output, extended service life and durable construction. Available with a variety of mounting options and beam patterns, the D-Series PRO can be used in virtually any lighting application. With a compact footprint measuring just 3" x 3" (see schematic for dimensions of flush mount versions), the D-Series Pro Lights are available in surface (standard) or flush mount with a variety of beam patterns.

Constantly evolving LED technology now packs an even harder punch with up to 102 percent more raw lumens than past versions. D-Series Pro Lights feature bold "Rigid" branding and blacked-out circuit boards, an aluminum bezel and heat sink and UV-resistant powder coatings. When it comes to off-road illumination, Rigid Industries is the industry leader in LED lighting solutions. Rigid's American-made product line includes everything from ultra-low amperage rock lights to GPS-enabled "smart" light bars.

The company's premier "hybrid" and "specter" optics technologies trickle down to everything that Rigid produces. The result is "blazing" with up to 40% more lux while using up to 50% less power consumption than the competition. As Rigid likes to say: "Own the night."

Specifications:

• Diffused, Flood and Spot Lights:
  • Size: 3.0" x 3.0"
  • Amp Draw: 2.14
  • Watts: 30
  • Volts: 36
  • Lumens: 3168
• Driving and Specter Diffused:
  • Size: 3.0" x 3.0"
  • Amp Draw: 3.14
  • Watts: 44
  • Volts: 36
  • Lumens: 4752

Includes:

• Single light unit
• Mounting hardware
• Stainless steel U-shaped bracket
• Vibration isolators
• Harness with switch
• Deutsch connector

Features:

• Diffused, driving, flood or spot beam surface mount lights
• 50,000+ hour lifespan
• 9-36 VDC operation
• Durable UV-resistant powder coated finish
• Aluminum alloy construction
• Integrated thermal management
• Impact resistant polycarbonate lens
• Over/under voltage protection
• RFI/EMI protection
• Reverse polarity protection
• RoHS compliant
• IP69K compliant against dust/water ingress
• Epoxy sealed
• Pressure equalizing vent
• Operating temp -40 to 145 degrees F
• SAE J575 compliant against shock/vibration
• Limited lifetime warranty
• For off-road use only
• Sold each
