RAM Mounts V-Shape Base

RAM Mounts V-Shape Base

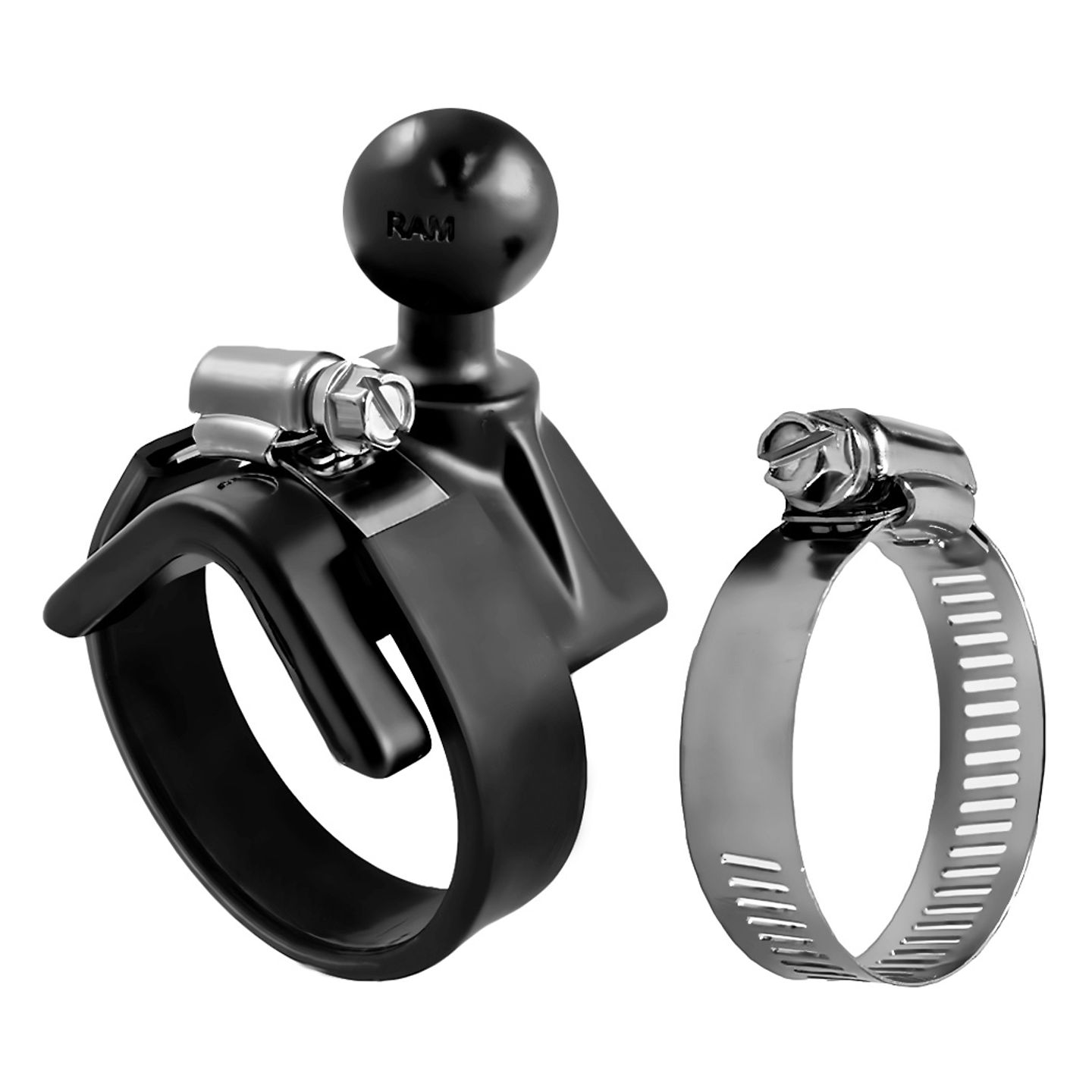

The RAM-B-108BU consists of a 1" rubber ball connected at a right angle to a v-shaped base and accommodates bars from 1" to 2.1" in diameter. To mount the base, place the saddle- shaped V plate on the bar then wrap the metal clamp strap around the rail and plate. Tighten the screw knob on the metal strap with a screw driver until the strap has a firm hold on the rail.

Includes:

• (1) 6" long metal strap
• (1) 8" long metal strap
• (1) 5.5" rubber strip that supports the metal straps to avoiding scratching or marking of the bar

Material:

• Powder coated marine grade aluminum

Ball Size:

• 1" Rubber Ball "B" Size
