Product Details

Item Condition: This item has been used for test purposes and may show slight signs of use. There may be minor cosmetic damage such as scuffs, scratches, stains, chips or dings. The original packaging may or may not be present.

Ohlins Rear Shocks For Harley Dyna

These Ohlins shocks feature precision machining on all componentry, allowing for a low friction, high performance design. The internals feature a nitrogen gas over an oil to manage rebound and compression. The wide range of preload adjustments allows you to soften or stiffen the ride, and can also accommodate many riders varying in weight.

Features:

  • Emulsion type shock absorber
  • STX single tube design
  • Built-in adjustable preload
  • Multiple spring rates available to accommodate a wide range of riders
  • Hard anodized
  • Nitrogen charged
  • Precision CNC-machined components
  • Low-friction piston rod
  • Low-friction eyelets
  • Serviceable and repairable
  • 1.41" piston diameter
  • Includes preload adjuster tool
  • Sold as a pair

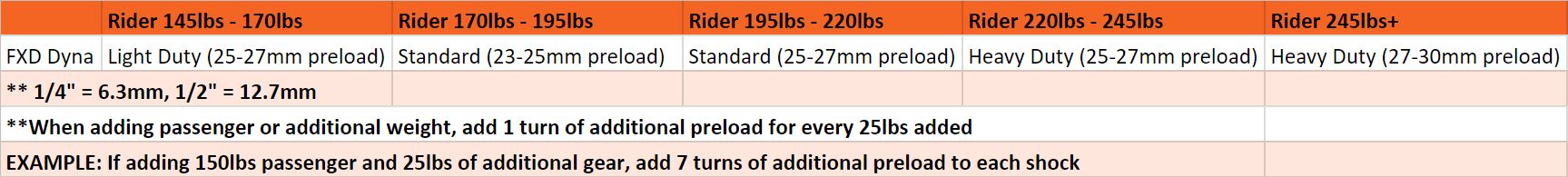

Spring Weights:

  • Light Duty recommended for individual rider weighing under 180lbs
  • Standard recommended for individual rider weighing 180lbs - 225lbs
  • Heavy Duty recommended for individual rider weighing over 250lbs
Product Style RevZilla Item # Store Sku MFR. Product # Availability
Product Style Black Spring / 13.39" Standard RevZilla Item #1713388 Store Sku MFR. Product #HD 220 AvailabilityOut of Stock: Enter your email address below to be notified when this item is available.
Fitment Notes & Exceptions
  • Shock lengths are measured fully extended, eyelet to eyelet on centers
  • A change in height at one end of the bike may require a change at the other
  • Changing ride height can potentially change the trail and mechanical trail
  • Prior to purchasing shocks that are different than your OEM length, please verify that wheel and suspension travel can be altered without causing clearance issues to the swingarm, axle, frame, tire, fender, chain/belt and guard, and exhaust
This Product Fits

Ohlins Rear Shocks For Harley Dyna 1991-2017 13.39" Standard / Black Spring [Demo - Good] Installation
