Morimoto 4Banger NCS LED Pods

Item: P1035415
0 Read 0 Reviews Write a Review

Morimoto takes off road lighting to the next level with their 4Banger LED Pods. Everything from the hardware to the brackets all the way to the wiring… Read More

$300.00
Rebate Available! View Details

Product Details

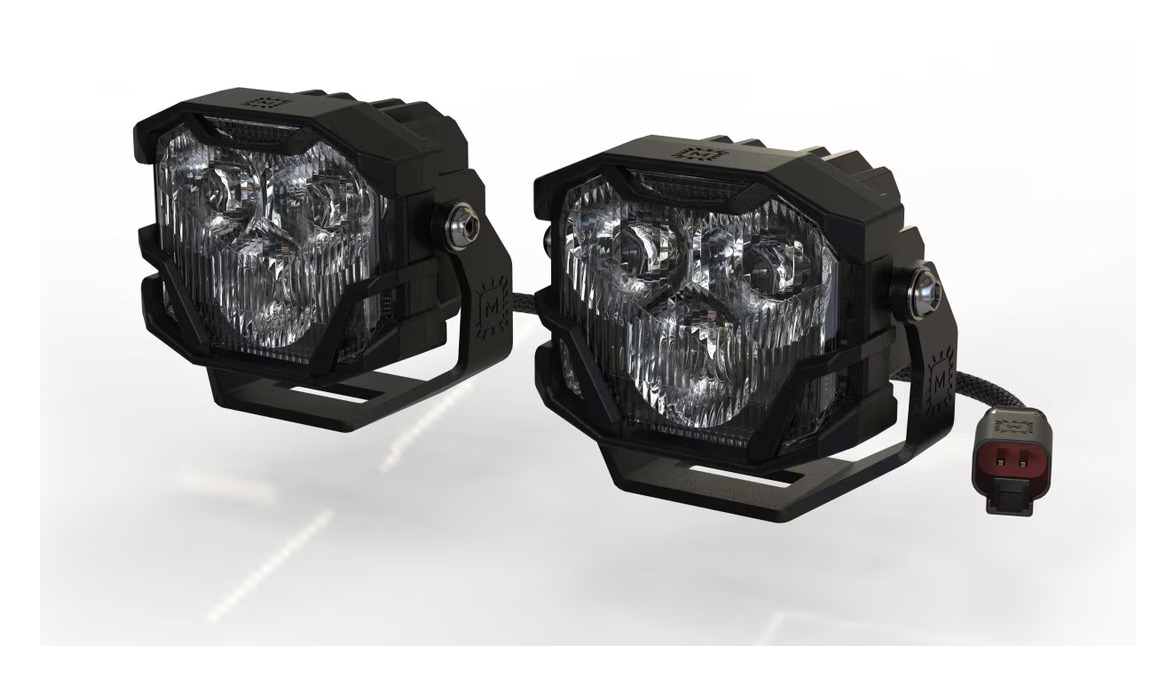

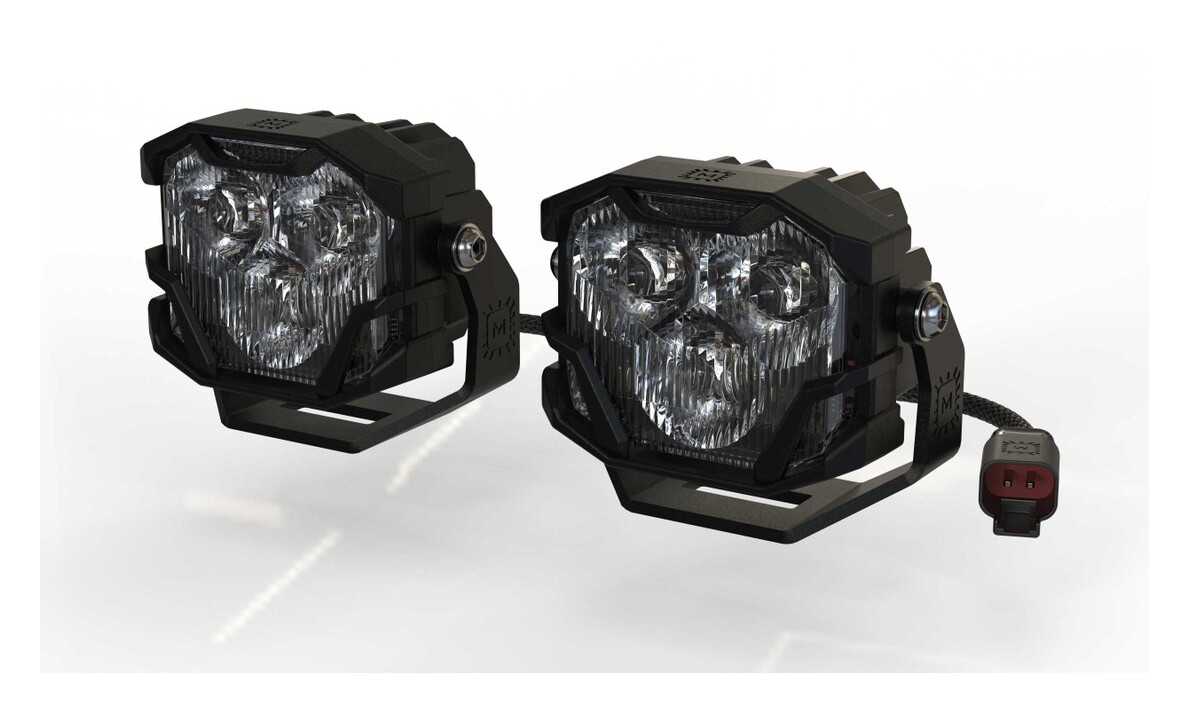

Morimoto 4Banger LED Pods

Morimoto takes off road lighting to the next level with their 4Banger LED Pods. Everything from the hardware to the brackets all the way to the wiring has been considered and designed with performance, reliability and style in mind. The white-output version is ideal for all-around visibility. For those who desire optimal output in rain, snow, or fog--the Yellow-output version will bring clarity no matter the weather. Morimoto has opted for Phosphor-Converted Yellow LEDs that produce yellow light at the origin, which is the most effective way to penetrate through particles in the air without compromising output.

Looking for a street legal option? When aimed properly, the Spot and Combo beams comply with SAE J581 standards for an auxiliary high beam. If you're looking for a high-performance street-legal LED pod to use as a fog light both the NCS Wide beam models are SAE J583 compliant for use as a street-legal fog light.

Trying to figure out which one is the perfect fit for you? Here is a quick breakdown.

NCS COMBO BEAM:

Illuminates a clear path with medium range. Great option for a flood beam. High power means high heat, which is why the 4Banger features a copper DTP (direct thermal path) PCB that maximizes heat transfer. The cast aluminum shell is electroplated before powder coating to withstand flaking. The potted internals, over-molded input wiring, and main gasket are all designed according to IP69K standards for full weather resistance. The 8H x 4V oval hot spot with a 10V degree spread at beam center has been perfectly tuned to produce an ideal flood beam. The 4Banger NCS Combo is an excellent aid to any set of high-performance headlights.

NCS SPOT BEAM:

Illuminates well into the distance. The NCS Spot features a highly focused 5-degree hot spot that's surrounded by a 14H x 4C degree flood beam, making it the perfect weapon for long range visibility. While not quite as powerful as the 4Banger HXB Spot (which uses Osram LEDs), when paired up with a set of NCS Combos, you will have no problems avoiding deer in the distance.

NCS WIDE BEAM:

Illuminates the ground directly in front of the vehicle, making them a perfect complement to a set of high-performance Morimoto headlights. They produce a very wide beam to drastically improve visibility off to the sides of the road. Superior vertical gradient control eliminates glare to oncoming traffic, and when mounted in the fog light position and aimed appropriately. The NCS Wide beam is 14% brighter than its next closest competitor (Rigid D-Series SAE), while consuming 28% less power (15.6W vs 21.5W) and has also been verified by Calcoast ITL to meet SAE F photometric standards for on-road use as a fog light.  Each set of Morimoto 4Banger LED pods includes a set of pedestal mounts for universal fitment. Morimoto also offers a variety of application-specific mounting bracket kits for fog lights and A-Pillars that make them bolt-on for many vehicles.

Features:

  • Made with LucidShape to optimize performance
  • Thermal Dynamics built in and optimized with SolidWorks
  • Lumen-dense LEDs from Nichia
  • Makrolon LED PC (Lens)
  • Input voltage is 9-18V DC
  • Power is at 20w
  • Current level is1.5A @ 13.2V DC
  • Input is 2-Pin w/ Pigtail
  • Intensity levels-White:55,500 Cd (Post Warm-Up) (555lux @ 10m), Yellow:38,850 Cd (Post Warm-Up) (384lux @ 10m)
  • Universal fit with Included U Brackets
  • Includes one pair of Universal U-Shape Mounts and complete hardware for installation
  • Hardware is made from stainless steel
  • Powdercoated die cast aluminum housing
  • The cast aluminum shell is electroplated before powder coating to withstand flaking.
  • IP rating is IP68K (Dust / High Pressure Water Resistant)
  • Dimensions 82mm W, 67mm H, 60mm D
  • Sold as a pair
  • 4Banger Switched Relay Harness or DT Connectors are sold separately
Product Style RevZilla Item # Store Sku MFR. Product # Availability
Product Style White / NCS Spot Beam RevZilla Item #10283863 Store Sku MFR. Product #BAF001 AvailabilityOut of Stock
Product Style White / NCS Combo Beam RevZilla Item #10283865 Store Sku MFR. Product #BAF003 AvailabilityAvailable: Ships in 3-5 business days
Product Style White / NCS SAE Wide Beam RevZilla Item #10283867 Store Sku MFR. Product #BAF005 AvailabilityAvailable: Ships in 3-5 business days
Product Style Yellow / NCS Spot Beam RevZilla Item #10283864 Store Sku MFR. Product #BAF002 AvailabilityOut of Stock
Product Style Yellow / NCS Combo Beam RevZilla Item #10283866 Store Sku MFR. Product #BAF004 AvailabilityAvailable: Ships in 3-5 business days
Product Style Yellow / NCS SAE Wide Beam RevZilla Item #10283868 Store Sku MFR. Product #BAF006 AvailabilityAvailable: Ships in 3-5 business days
Fitment Notes & Exceptions
This is a universal fit part; it may or may not fit without modification.
