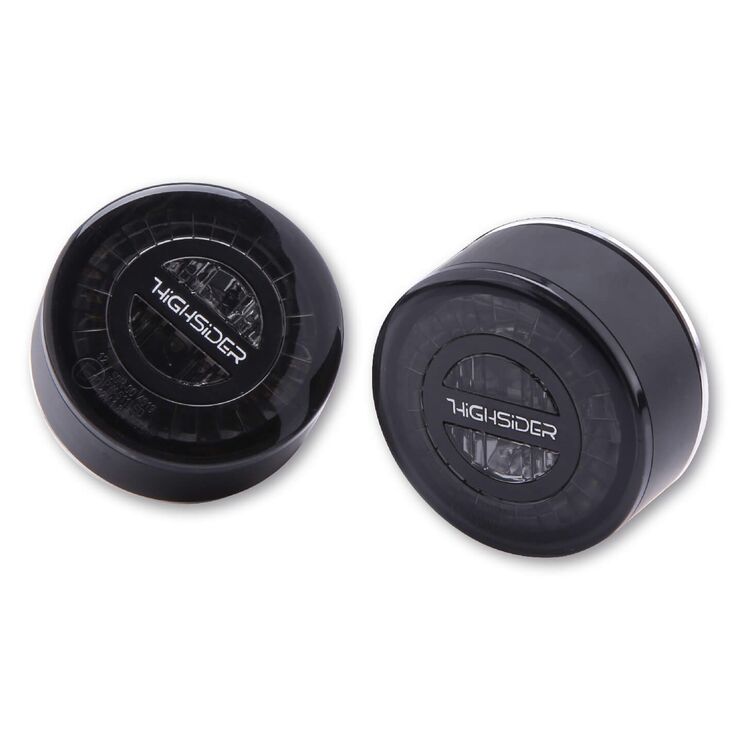

Highsider Rocket Run / Turn / Brake Signals

The Highsider Rocket Run, Turn, and Brake Signals are built for custom mounting. This allows the installer to choose between recessed or surface mounting. Constructed with a black aluminum ring and smoked lens and inspired by organic shapes. In the center are 6 bright SMD LEDs. The outer ring consists of COBs (Chip On Board). Thanks to the new LED chip embedding for high-power LEDs, a very high luminance can be achieved with currently the best possible efficiency and service life.

Features:

• For rear use
• E-approved
• Black anodized aluminum
• Dimensions: Depth: .55″ (14mm) Diameter: 1.77″ (45mm) (with aluminum ring) Depth: .39″ (10mm)
• Mounting bolt: M8 x 18 mm
• Sold in pairs

Connections:

• Black wire = ground (-)
• Yellow wire = tail light (+)
• Red wire = brake light (+)
• Blue = turn signal (+)
