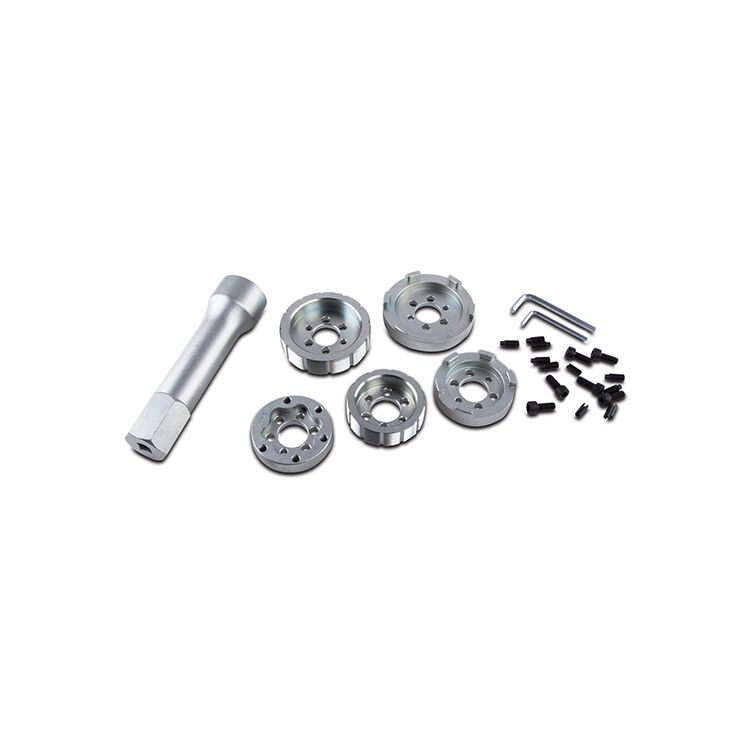

High Lifter Snorkel Gear Transmission Tool For Polaris Transmissions

High Lifter has created a tool designed to easily remove the snorkel tube nut, particularly when the nut is stuck or sticking due to debris or metal shavings from the transmission. Properly remove or tighten the snorkel gear tube when replacing or upgrading the front output/snorkel shaft and output/snorkel gear in the main gear case. It can also be used to check the backlash on the output/snorkel gear.

Features:

  • Hardened 5140 alloy steel components with zinc finish.
  • Tool body accepts a 40mm wrench or socket as well as a 1/2in square drive to aid in installation and removal.
  • 3 heads to adapt the tool for different applications. Two heads machined and one with replaceable extended tip set screws.
  • 2 thread cleaning taps to remove chips and burs from transmission case.
  • Components secured with 8mm grade 12.9 bolts.
  • Pins to aid in tool assembly.
  • Installation tools and hardware included with replacement pins and bolts.
  • Main tool has precision pins align the pin slots in the snorkel gear nut
  • Constructed of plain carbon steel, with 5 dowel pins for easy insertion
  • Smooth chrome finish for easy cleaning
  • Additional interchangeable caps that allow the tool to work on multiple transmissions
  • Caps have alignment pins and magnets to lock and secure them to the main tool.  Makes for easy change out!
  • Tool Mates to OEM Part # 3234278, 3236120, 3235947 & 3236423
  • Can be used with a 1/2" square drive ratchet for easy removal or insertion of the snorkel tube

Note: This tool is NOT intended or recommended to be used with an impact wrench

Product Style RevZilla Item # Store Sku MFR. Product # Availability
Product Style High Lifter Snorkel Gear Transmission Tool For Polaris Transmissions RevZilla Item #10341562 Store Sku MFR. Product #54-60872 AvailabilityAvailable: Ships in 3-5 business days
