High Lifter Service Tool Bundle

Get everything you need to service your ATV / UTV with this tool bundle from High Lifter. Complete with the Ball Joint Installation Tool, Alignment Kit and Snorkel Gear Transmission Tool you can handle some of the more complicated fixes at home.

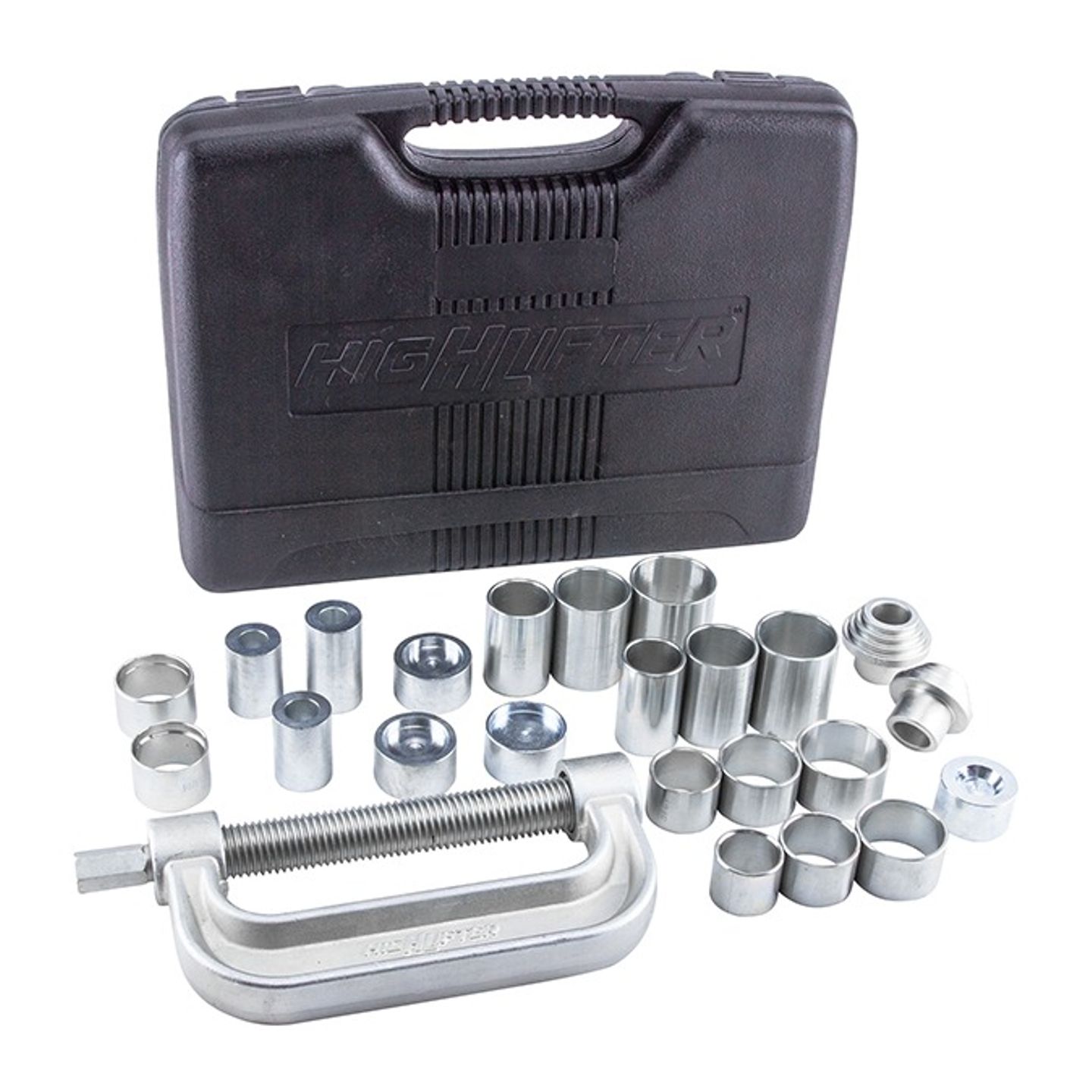

Ball Joint Installation Tool Features:

  • All cups and adapters are machined DOM tubing and are zinc plated
  • 14 Receiving cups
  • 2 Cup adapters
  • 4 Install adapters
  • 3 Pin adapters
  • Forged C-clamp press(jack screw)
    • Steel zinc coated
  • Custom blow mold case

Alignment Kit Features:

  • Easy to use – bolt plates to the hubs on each side, front or rear.
  • Measure TOE directly using the 2 tape measures included in the kit.
  • Measure CAMBER using the magnetic, digital angle finder that is provided in the kit.
  • Aligning a vehicle after replacing suspension components (tie rods, control arms, etc.)
  • Making camber/toe alignment changes in your garage or on the trail
  • Adjusting alignment to your desired specifications
  • Prevents uneven wear pattern on tires
  • Correct offset steering wheel
  • Correct steering pull while driving
  • Fitment:  The plates provided are designed to fit most UTV hub bolt patterns.  (4/156 & 4/137 patterns up to 12mm stud size).  Simply attach the plates the hub and secure them with the lug nuts.  See chart for bolt patterns and stud sizes to ensure this kit will work for your application.
  • Bolt Pattern & Stud Size/Thread Pitch
    • 4/137 (10mmx1.25)
    • 4/137 (12mmx1.25)
    • 4/137 (12mmx1.5)
    • 4/156 (3/8-24)
    • 4/156 (10mmx1.25)
    • 4/156 (12mmx1.5)
    • 4/156 (12mmx1.25)

Snorkel Gear Transmission Tool Features:

  • Hardened 5140 alloy steel components with zinc finish.
  • Tool body accepts a 40mm wrench or socket as well as a 1/2in square drive to aid in installation and removal.
  • 3 heads to adapt the tool for different applications. Two heads machined and one with replaceable extended tip set screws.
  • 2 thread cleaning taps to remove chips and burs from transmission case.
  • Components secured with 8mm grade 12.9 bolts.
  • Pins to aid in tool assembly.
  • Installation tools and hardware included with replacement pins and bolts.
  • Main tool has precision pins align the pin slots in the snorkel gear nut
  • Constructed of plain carbon steel, with 5 dowel pins for easy insertion
  • Smooth chrome finish for easy cleaning
  • Additional interchangeable caps that allow the tool to work on multiple transmissions
  • Caps have alignment pins and magnets to lock and secure them to the main tool.  Makes for easy change out!
  • Tool Mates to OEM Part # 3234278, 3236120, 3235947 & 3236423
  • Can be used with a 1/2" square drive ratchet for easy removal or insertion of the snorkel tube
Product Style RevZilla Item # Store Sku MFR. Product # Availability
Product Style High Lifter Service Tool Bundle RevZilla Item #10341590 Store Sku MFR. Product #54-60804 AvailabilityAvailable: Ships in 3-5 business days
