High Lifter 6" Portal Gear Lift Polaris RZR / General 2015-2022

Item: P1038816
0 Read 0 Reviews Write a Review

The Portal Gear Lift from High Lifter helps conquer all the terrain with the increased torque and power you are looking for. With available single or … Read More

$3,559.50$4,135.50
$3,955.00$4,595.00
Save up to $459.50 10%
Price depends on product options. Make a selection to update price.
Rebate Available! View Details

This product is vehicle specific.
Select a vehicle to ensure fitment.

Looking for a different vehicle? Change vehicle selection

Product Details

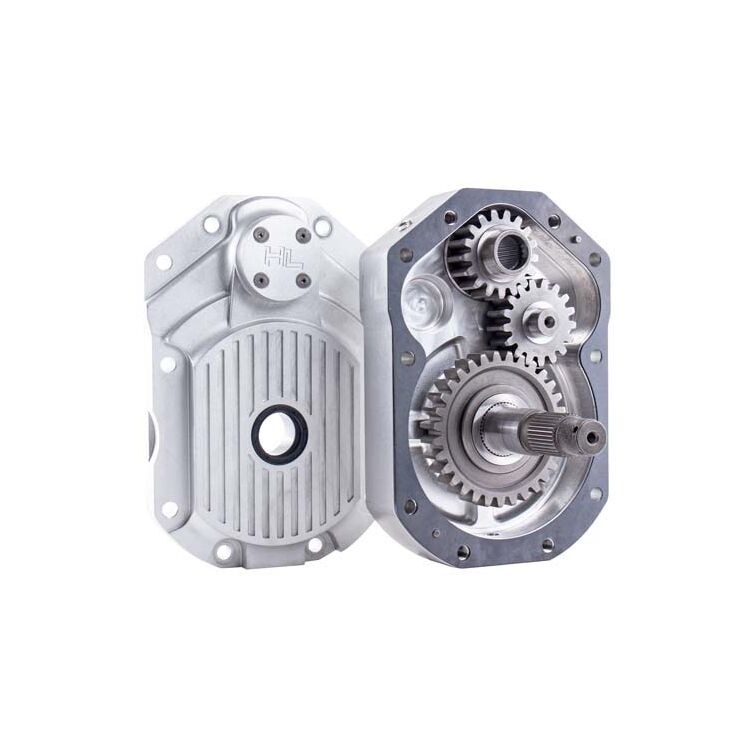

High Lifter 6" Portal Gear Lift Polaris RZR / General

The Portal Gear Lift from High Lifter helps conquer all the terrain with the increased torque and power you are looking for. With available single or dual idler, and a 45% - 60% gear reduction to help spread and limit the load on those parts of your machine that are susceptible to failure you can rest assured that your UTV / Side-by-Side will dominate the trails. Built using forged metal vs cast you add strength top your unit and get that lift you want. The gear reductions helps to extend brake life by the improved engine braking so there is less stress on your rotors.

Features:

  • Each kit includes 4 portal boxes
  • Forged Gear Boxes
    • Strongest boxes on the market because forging produces a tougher piece of metal
    • Forging is stronger than both cast and billet aluminum
  • Gear Box Venting
    • Box venting option
    • Offers a plug for venting with an optional easy to install kit
    • Vent kits allow an advantage of cooling which reduces early deterioration of the gaskets and seals
  • Gasket Material and Design
    • High density Kevlar fiber gaskets plus no additional sealant is needed
    • Gasket material is creep resistant plus oil and coolant resistant
  • Seals
    • Two oil seals on the spindle shaft for 100% more sealing area
    • Dual seals prevent water intrusion and oil leaks
    • True triple seal on the input shaft which includes a wiper seal that provides a significant extra layer of protection
  • Backing Plate
    • 5/16” steel plate with Bent flanges for strength and durability
    • Welded gusset brackets and designed to factory off-set
    • Works with all control arms that are built to factory hub specifications
  • 13” Rotor
    • Precision ground stainless steel rotors
    • Access holes for ease of assembly and disassembly
    • Slotted rotor allows for heat dissipation and cooling
  • Gear Profile
    • Alloy steel heat treating process increases overall internal and external strength
    • CNC precision ground machining ensures excellent fitment and increased strength
    • Controlled gear lapping for ease of installation and a quieter performance
Product Style RevZilla Item # Store Sku MFR. Product # Availability
Product Style Single Idler / 45% Gear Reduction RevZilla Item #10290791 Store Sku MFR. Product #73-14519 AvailabilityIn Stock: Ships within 24 hours
Product Style Dual Idler / 45% Gear Reduction RevZilla Item #10290790 Store Sku MFR. Product #73-14508 AvailabilityIn Stock: Ships within 24 hours
Product Style Dual Idler / 60% Gear Reduction RevZilla Item #10290794 Store Sku MFR. Product #73-14533 AvailabilityIn Stock: Ships within 24 hours
This product is vehicle specific.
Select a vehicle to ensure fitment.
This Product Fits
Polaris
General 1000 EPS 2016, 2017, 2018, 2019, 2020
General 1000 EPS DLX 2016-2022
General 1000 EPS Premium 2018, 2019, 2020, 2021, 2022
General 1000 EPS Sport 2021, 2022
General 1000 EPS w/Ride Command 2018, 2022
General 4 1000 EPS 2017, 2018
General 4 1000 EPS DLX 2020, 2021
General 4 1000 EPS Premium 2021
RZR 4 900 EPS 2015, 2016, 2017
RZR 900 2015, 2016, 2017, 2018, 2019
RZR 900 EPS 2017
RZR 900 EPS XC Edition 2015, 2016, 2017
RZR S 1000 EPS 2016, 2017, 2018, 2019
RZR S4 1000 EPS 2019, 2020
RZR S 900 2015, 2016, 2017, 2018, 2019
RZR S 900 EPS 2015, 2016, 2017
RZR Trail 900 FOX Edition 2020
RZR Trail 900 Premium 2020
RZR Trail S 1000 Premium 2021
RZR Trail S 1000 Ultimate 2021
RZR Trail S 900 Premium 2020
RZR Trail S 900 Sport 2020, 2021
This item is also available for 105 different vehicles. View All Models
Polaris
General XP 1000 EPS DLX 2020-2022
General XP 1000 EPS DLX Factory Custom w/Ride Command 2021
General XP 1000 EPS DLX w/Ride Command 2021-2022
General XP 1000 Trailhead Edition 2022
General XP 1000 Troy Lee Designs Edition 2022
General XP 4 1000 EPS DLX 2020-2022
General XP 4 1000 EPS DLX Pursuit Edition 2021
General XP 4 1000 EPS DLX w/Ride Command 2022
General XP 4 1000 Trailhead Edition 2022
General XP 4 1000 Troy Lee Designs Edition 2022
Ranger 1000 2020
Ranger 1000 2021-2022
Ranger 1000 Crew 2020
Ranger 1000 Crew 2021-2022
Ranger 1000 Crew EPS 2020
Ranger 1000 Crew EPS Premium 2021-2023
Ranger 1000 Crew EPS Winter Prep 2022
Ranger 1000 EPS 2020
Ranger 1000 EPS 2021-2023
Ranger 1000 Premium 2021-2023
Ranger 900 Crew 2014-2015
Ranger 900 Crew 6 EPS 2016
Ranger 900 Crew EPS 2015-2016
Ranger Crew XP 1000 Big Game Edition 2021
Ranger Crew XP 1000 North Star Edition Trail Boss 2021-2022
Ranger Crew XP 1000 Waterfowl Edition 2021
Ranger XP 1000 2017
Ranger XP 1000 Big Game Edition 2021
Ranger XP 1000 Crew EPS 2019-2020
Ranger XP 1000 Crew EPS 2017-2018
Ranger XP 1000 Crew EPS Back Country Edition 2019
Ranger XP 1000 Crew EPS Premium 2019-2020
Ranger XP 1000 Crew EPS Premium 2021-2023
Ranger XP 1000 Crew EPS Texas Edition 2020
Ranger XP 1000 Crew EPS Texas Edition 2023
Ranger XP 1000 Crew EPS Texas Edition 2021-2022
Ranger XP 1000 Crew High Lifter 2019-2020
Ranger XP 1000 Crew High Lifter 2017
Ranger XP 1000 Crew High Lifter 2021-2022
Ranger XP 1000 Crew Northstar Edition 2019-2020
Ranger XP 1000 Crew Northstar Edition 2017-2018
Ranger XP 1000 Crew Northstar Edition Premium 2020
Ranger XP 1000 Crew Northstar Edition Premium 2022-2023
Ranger XP 1000 Crew Northstar Edition Premium 2021
Ranger XP 1000 Crew Northstar Edition Trail Boss 2023
Ranger XP 1000 Crew Northstar Edition Ultimate 2020
Ranger XP 1000 Crew Northstar Edition Ultimate 2023
Ranger XP 1000 Crew Northstar Edition Ultimate 2021-2022
Ranger XP 1000 Crew Northstar Edition Ultimate MB Quart Audio 2020
Ranger XP 1000 EPS 2018
Ranger XP 1000 EPS Back Country Edition 2019
Ranger XP 1000 EPS Northstar 2018-2019
Ranger XP 1000 EPS Premium 2019-2020
Ranger XP 1000 EPS Premium 2021-2023
Ranger XP 1000 EPS Texas Edition 2020
Ranger XP 1000 EPS Texas Edition 2021
Ranger XP 1000 High Lifter Edition 2019-2020
Ranger XP 1000 High Lifter Edition 2021-2022
Ranger XP 1000 High Lifter Edition 2017-2018
Ranger XP 1000 Northstar Edition 2020
Ranger XP 1000 Northstar Edition Premium 2020
Ranger XP 1000 Northstar Edition Premium 2022-2023
Ranger XP 1000 Northstar Edition Premium 2021
Ranger XP 1000 Northstar Edition Trail Boss 2023
Ranger XP 1000 Northstar Edition Trail Boss 2021-2022
Ranger XP 1000 Northstar Edition Ultimate 2020
Ranger XP 1000 Northstar Edition Ultimate 2023
Ranger XP 1000 Northstar Edition Ultimate 2021-2022
Ranger XP 1000 Northstar Edition Ultimate MB Quart Audio 2020
Ranger XP 1000 Trail Boss 2021-2022
Ranger XP 1000 Waterfowl Edition 2021
Ranger XP 900 2013-2019
Ranger XP 900 Crew 2017-2018
Ranger XP 900 Crew EPS 2017-2019
Ranger XP 900 EPS 2015-2017
Ranger XP 900 EPS High Lifter Edition 2016
RZR Pro XP 4 Premium 2020-2021
RZR Pro XP 4 Sport 2021
RZR Pro XP 4 Ultimate 2020-2021
RZR Pro XP Premium 2020-2021
RZR Pro XP Sport 2020-2021
RZR Pro XP Ultimate 2020-2021
RZR Turbo S EPS Velocity 2021
RZR XP 1000 EPS 2015-2019
RZR XP 1000 EPS Dynamix Edition 2019
RZR XP 1000 EPS High Lifter Edition 2015-2022
RZR XP 1000 EPS Trails and Rocks Edition 2018-2022
RZR XP 1000 EPS w/Ride Command 2018-2019
RZR XP 1000 Premium 2020-2023
RZR XP 1000 Sport 2021-2023
RZR XP 1000 Ultimate 2023
RZR XP 4 1000 EPS 2015-2019
RZR XP 4 1000 EPS Dynamix Edition 2019
RZR XP 4 1000 EPS High Lifter Edition 2016-2022
RZR XP 4 1000 EPS w/Ride Command 2018-2019
RZR XP 4 1000 Premium 2020-2023
RZR XP 4 1000 Premium w/Ride Command 2020-2021
RZR XP 4 1000 Sport 2021-2023
RZR XP 4 1000 Ultimate w/Ride Command 2023
RZR XP 4 Turbo EPS 2016-2021
RZR XP 4 Turbo EPS Dynamix Edition 2018-2019
RZR XP Turbo EPS 2016-2021
RZR XP Turbo EPS Dynamix Edition 2018-2019
RZR XP Turbo S EPS 2018-2019
RZR XP Turbo S Velocity 2020
