Graves Motorsports

Graves Performance Bundle Yamaha R6 2008-2016

Item: P351549
1 Read 1 Review Write a Review

The Graves Performance Bundle is a one stop shop for a serious performance upgrade. Read More

$1,884.56
$2,093.95
Save $209.39 10%
Rebate Available! View Details

This product is vehicle specific.
Select a bike to ensure fitment.

Looking for a different bike? Change bike selection

Product Details

This product is legal in California only for racing vehicles which may never be used, registered or licensed for use upon a highway.

Graves Performance Bundle Yamaha R6

The Graves Performance Bundle is aimed at the sportbike enthusiast who is looking for a serious performance package for their race/track orientated motorcycle. Included in this bundle is a FlashTune Data-Link ECU Flashing Kit that is designed to unlock a multitude of functions hidden within your OEM ECU, a Graves Works 3 Exhaust System that is tuned to improve exhaust sound and add extra horsepower and a Graves EXUP Servo Eliminator to eliminate the heavy servo motor and that annoying FI light.

The Flash Tune Data-Link kit includes a bike side harness that permanently installs to your motorcycle and a USB adapter harness that allows you to make changes to the OEM ECU. You will no longer need to send away your ECU to get flashed! Flash Tune believes everyone deserves the same tuning technology that was once reserved for factory riders. With FlashTune's software you can remove restrictions that the factory must put in place to meet strict street vehicle regulations. By flashing your ECU you are able to tune your bike without interfering with critical correction factors. The Data-Link kit combined with FlashTune's software not only allows control of fuel maps, but also functions such as rev-limiter, top speed limiter, O2 sensor on/off, AIS valve and fan on/off temp. Another great feature that is not found anywhere else on the market is the ability to edit the deceleration map. Most if not all stock maps cut all fuel when the throttle is closed, by adding small amounts of fuel during deceleration it smooths out weight transfer and keeps the chassis settled, resulting in a faster lap time.

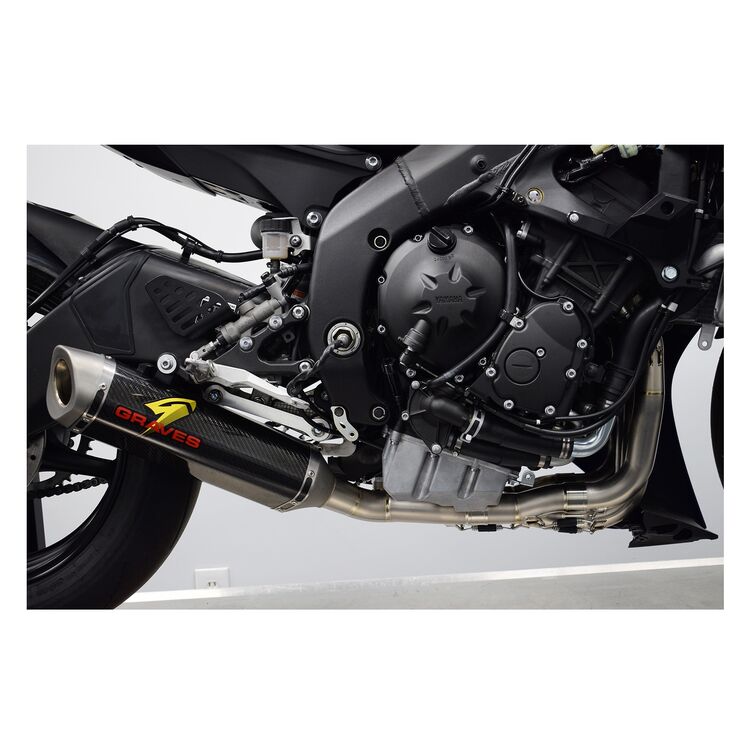

The Graves Works 3 Full exhaust system features titanium headers with an aggressive tapered design with cross-over pipes, these features allow for an increased throttle response and low to mid range power delivery while increasing the peak power output. Graves advanced welding processes reduce oversized welds that can cause excessive heat buildup. A special pipe bending technique known as mandrel bending is used for all Graves exhausts to prevent wrinkles and ovalization of the exhaust pipes. The diamond-shaped muffler matches the aesthetics of the R6's lines and delivers the best possible power and torque. Graves Everlast packing produces an exhaust note like no other and holds up longer to the extreme conditions of a high-revving motorcycle. The muffler mounts directly to the motorcycle by way of a carbon fiber strap, this not only saves weight but gives the exhaust a stealthy appearance.

Flash Tune allows control over the following:

  • Remove ECU restrictions
  • Engine braking adjustments
  • High load fuel maps (with PC3 and PC5 map importing)
  • Low load (cruising) fuel maps
  • Fuel injector proportioning
  • Ignition timing
  • Immobilizer function
  • Cooling fan temps
  • Rev-limiter control
  • Remove top speed limiter
  • ECU based quick-shifting with additional quick-shifting hardware (sold separately)
  • Electronic steering-damper settings
  • Speedometer calibrations
  • Functions will vary by model
  • FlashTune Software for PC only
  • For closed circuit racing use only

Exhaust Features:

  • Full titanium headers and mid-pipes
  • Strapless muffler design
  • Aerospace grade titanium
  • Machined joint fittings
  • Billet hard anodized 7075T651 aluminum flanges
  • Compatible with OEM and Dynojet O2 sensor
  • Advanced welding process showcases laser perfection welds
  • Made in USA

Includes:

  • Graves Works 3 Exhaust System
  • FlashTune Data-Link ECU Flashing Kit
  • Graves EXUP Servo Eliminator

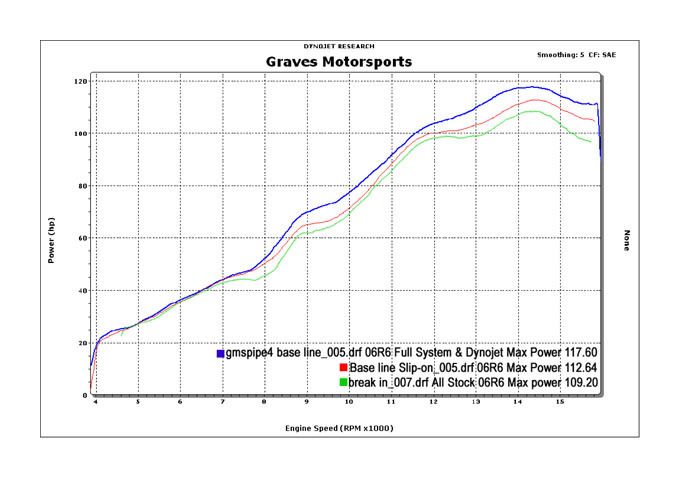

Unit Stock Exhaust Graves Max Gain
Maximum Power HP 112.64 117.6 + 4.95
Weight lb 19.3 8.2 - 11.1

Made in the USA
Product Style RevZilla Item # MFR. Product # Availability
Product Style Carbon Fiber/Titanium RevZilla Item #1163733 MFR. Product #GPBR6 AvailabilityOut of Stock
This product is vehicle specific.
Select a bike to ensure fitment.
This Product Fits
Yamaha
R6 2008-2016
This item is also available for 20 different bikes. View All Models
Kawasaki
Ninja ZX-10R 2016-2017
Ninja ZX-10R ABS 2016-2017
Suzuki
GSX-R1000 2017
GSX-R1000R 2017
Yamaha
FJ-09 2015-2017
FZ-07 2015-2017
FZ-09 2014-2017
MT-07 2018-2019
MT-09 2018-2020
R1 2009-2014
R1 2017
R1 2015-2016
R1 LE 2009-2012
R1 LE 2016
R1M 2017-2019
R1M 2015-2016
R1S 2017-2018
R1S 2016
R6 2017
XSR900 2016-2021
