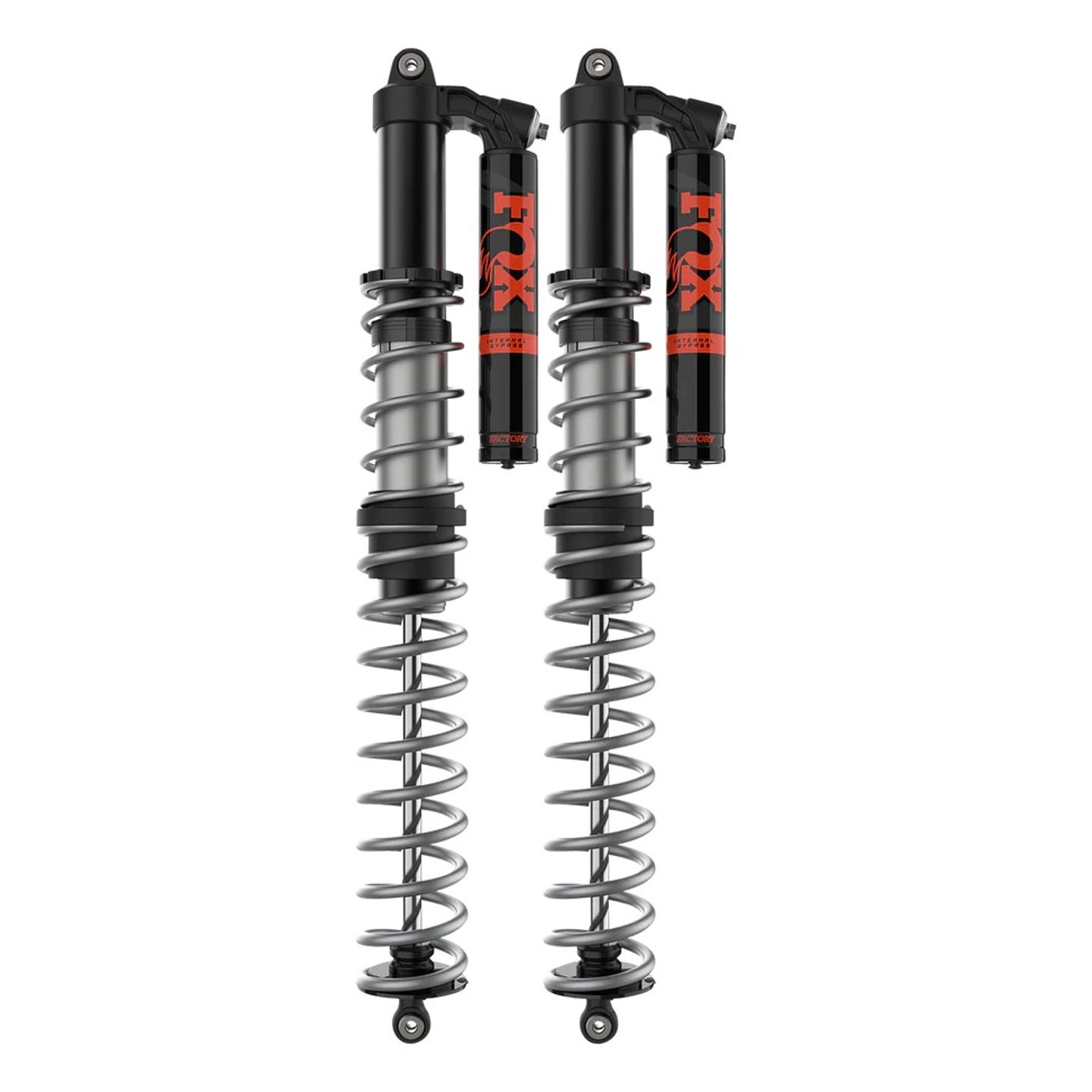

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Kawasaki Teryx KRX 1000 2020-2025

Fox Factory Factory Race Series 3.0 Internal Bypass Rear Shocks Kawasaki Teryx KRX 1000

Fox Factory bring the same race-proven position-sensitive damping technology from the trophy truck world and created a direct bolt-on replacement for your UTV / Side-by-Side.

An increase in the shock bore diameter helps prevent shocks from fading and the velocity-sensitive damping helps generate additional resistance force for constant impacts. Fox keeps the weight down by utilizing aluminum bodies and reservoirs in the construction so you can shave weight without sacrificing performance.

When you need to help dial in your suspension the independent high- and low-speed compression adjusters, wide-range rebound adjusters, and a true dual-rate spring package with adjustable crossover rings help you improve your setup for the optimum performance.

FOX’s patented Internal Bypass technology (IBP) allows damping control to vary based on where the piston is traveling inside the shock. This means that while the piston is traveling in the middle of the stoke the damping can be lighter to smooth out whoops and rocks while still controlling body roll. Once the piston is running at the bottom of the shock during full compression, the damping is dramatically increased to resist bottoming out even at high speeds over trophy truck size whoops. As the shock extends and the piston reaches the top of the shock, the damping again increases to prevent damage from topping out when all the energy in the springs are unloaded.

Features:

• Position-sensitive internal bypass damping tubes
• Velocity-sensitive valved, high flow damping piston
• Piggyback reservoir or Remote reservoir
• Silver dual rate race springs with crossover
• 7/8” hard-chromed induction-hardened shaft
• PTFE-lined spherical bearings for smooth, durable movement
• Type III hard-anodized aluminum body and reservoir
• Sold as a pair

Adjustments/Technical Information:

• Spring preload
• Dual-Speed Compression (DSC)
• Wide-range rebound
• Spring crossover
• Extended: 41.00
• Compressed: 25.50
• Travel: 15.50
• Top Mount: Eyelet
• Bottom Mount: Eyelet
• Reservoir: Piggyback

Note: Images are for reference, actual product may vary based on application
