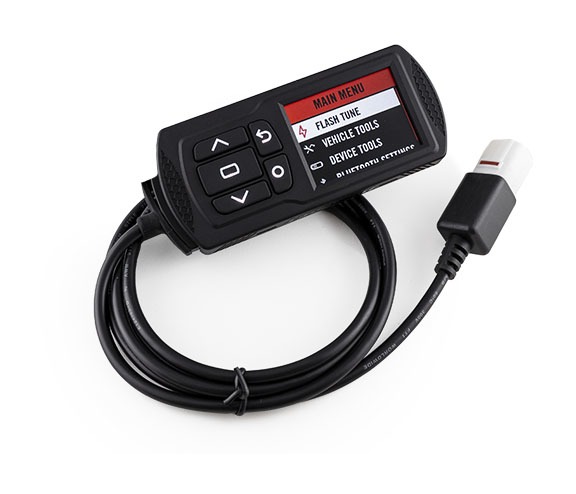

Dynojet Power Vision 3 Yamaha FZ-09 / MT-09 2014-2020

Dynojet PV3 Yamaha FZ09 / MT09

A Dynojet PV3 enables fuel tuning straight from your bike's diagnostic connector. You don't need to tear down your bike to access throttle body connections or tap into switched lines, or deal with sending off your ECU. The PV3 simply plugs in allowing you to view system metrics and flash your ECU with a better tune to match your modifications.

Dynojet offers a database of free, downloadable maps for many combinations of intake and exhaust modifications. The PV3 also includes C3 Tuning Power Core software (Windows PC based tuning and data logging application) for those looking to further customize their tunes.

Features:

• Fueling revised for maximum power and torque
• Tunes available for popular aftermarket modifications
• Spark timing optimized for 91-93 octane fuel
• Rev limit raised
• Speed limits raised
• DBW tables altered
• Display vehicle data channels in real-time
• Weather resistant for use in all conditions
• High contrast display, viewable in direct sunlight

Software:

• C3 Tuning: Adjust all defined tables with live cell tracing, advanced table operations (Horizontal/Vertical/Bilinear Interpolate). Full support for Undo and Redo of all table operations for faster tuning and less time wasted backing up maps.
• Cell Trace Replay: Clicking on any point in a log file moves the cell trace cursor exactly where it was during the run. Quickly make adjustments without searching for the right axis values.
• Map Compare: Build tunes faster by leveraging previous work. Map Compare is a fully-featured comparison tool that shows the differences between separate tunes or individual tables within the same map (front cylinder vs rear cylinder tables, for example).
• Table Math Scripting: Tune faster and smarter than ever before with repeatable, fully customizable tuning scripts. Tune directly from data logs and make rapid full-table adjustments and never worry about cell-by-cell adjustment ever again. Use pre-built Dynojet scripts, or build your own for full control."
• Table Digital Read Out: Don't waste another minute guessing values between cells! Hovering the mouse cursor calculates the exact value at that location in the table. No need to view channels outside C3, the Cell Tracer is calculated as well.
