Bitubo EBH Full Fork Cartridge Kit Honda CBR1000RR-R Fireblade 2021-2023

Bitubo EBH Full Fork Cartridge Kit Honda CBR1000RR-R Fireblade

The Bitubo EBH Full Fork Cartridge Kit is a race-developed suspension upgrade engineered to deliver maximum front-end control and precision. Built with direct input from World Superbike and top international racing teams, this pressurized cartridge system features advanced technologies like FPS (Full Pressure System), OPC (Overpressure Control), and a coaxial compensation chamber for consistent, cavitation-free damping performance. The asymmetric cartridge design separates compression and rebound functions, allowing highly refined and independent adjustment through intuitive top-cap controls. With a high damping coefficient at low speeds, the EBH kit significantly reduces front-end dive under braking, improving stability and rider confidence. Lightweight construction using Ergal components and optimized internals ensures reduced mass without compromising strength or performance. Complete with setup components and multiple spring options, the EBH kit is built for riders demanding track-level performance and tunability.

Features:

• Pressurized cartridge system with advanced damping technologies
• FPS (Full Pressure System) for immediate, cavitation-free damping response
• OPC (Overpressure Control System) for consistent performance under load
• Coaxial Compensation Chamber for improved fluid control and damping stability
• Asymmetric cartridge design separates compression and rebound damping
• Independent external adjustment for preload, compression, and rebound
• High low-speed damping reduces front-end dive during braking
• Ø27mm Ergal piston with anti-friction surface treatment
• Ø10mm pumping rod with anti-friction coating
• Ergal cartridge body for lightweight strength and durability
• Mechanical bottom-out system with polyurethane (NBR) buffer
• Cr-Si steel springs with heat treatment and shot peening for durability
• Hydraulic lubrication separated from sliding lubrication for improved performance
• Lightweight (LC) construction with optimized materials for reduced weight
• Includes 2 additional springs with different stiffness rates for custom setup
• Includes 1 liter of Fuchs-Silkolene oil for smooth operation
• Includes installation tools and setup instructions

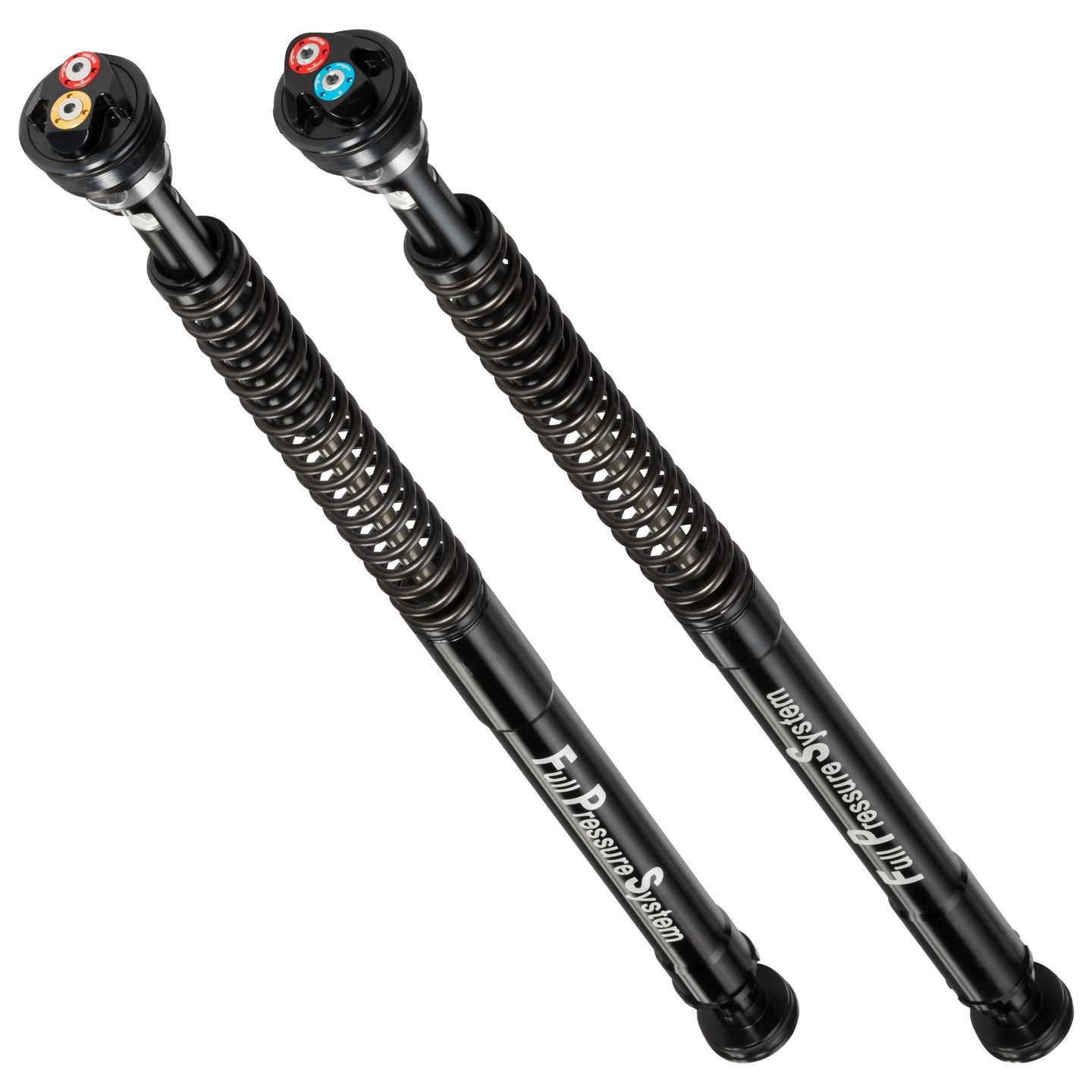

Note: Image for reference only.
