MTX Audio 2-Channel Powersports Amplifier

MTX Audio 2-Channel Powersports Amplifier

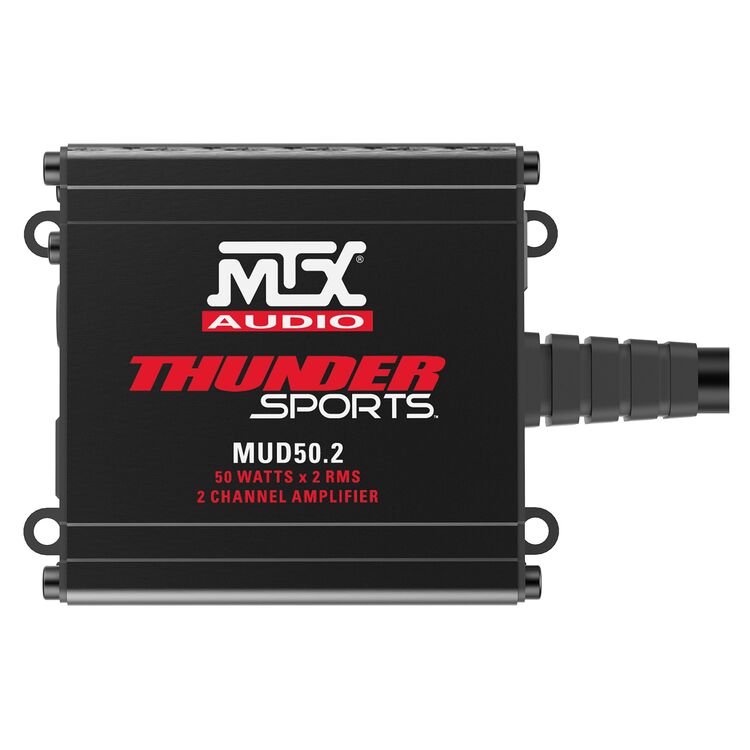

The MTX MUD50.2 stands out as MTX's most compact amplifier to date. It employs a full-range class D topology, ensuring outstanding sound quality and impressive thermal efficiency. Designed to withstand various weather conditions, it features a conformal coated circuit board and control covers that shield against moisture damage. Its innovative design incorporates a pigtail, consolidating all necessary wiring for power, ground, and signal connections, eliminating the need for direct connections at the amplifier. This pigtail acts as a protective barrier, preventing internal components from being compromised by moisture, dirt, and other potential hazards.

Features:

• 2-channel
• Small chassis
• Conformal coated circuit board
• Surface mount technology
• Variable crossover
• Stainless steel hardware
• Rubber gaskets around RCA connectors
• Plastic cover over control adjustments

Specifications:

• MUD50.2
  • Description: 2-CHANNEL
  • 4Ω RMS Power Output: 25W X 2 CHANNELS
  • 2Ω RMS Power Output: 50W X 2 CHANNELS
  • 1Ω RMS Power Output: NA
  • Topology: FULL RANGE CLASS D
  • THD: <1.0%
  • Frequency Response: 11HZ - 40KHZ
  • Crossover: FIXED HPF @ 80HZ, 12DB/OCT
  • Max Sensitivity: 200MV
  • Maximum Input Signal: 5V
  • Height: 3.64" (92.5MM)
  • Width: 2.85" (72.5MM)
  • Depth: 1.73" (43.9MM)
• MUD100.2
  • Description: 2-CHANNEL
  • 4Ω RMS Power Output: 50W X 2 CHANNELS
  • 2Ω RMS Power Output: 100W X 2 CHANNELS
  • 1Ω RMS Power Output: NA
  • 4Ω Bridged: 200W X 1-CHANNEL
  • Topology: FULL RANGE CLASS D
  • THD: <1.0%
  • Frequency Response: 20HZ - 20KHZ
  • Crossover: FIXED HPF/LPF @ 80HZ, 12DB/OCT
  • Max Sensitivity: 200MV
  • Maximum Input Signal: 5V
  • Height: 4.22"
  • Width: 5.72"
  • Depth: 1.86"
