Closeout
Cylinder Works

Cylinder Works Standard Bore Cylinder Kit Yamaha Grizzly / Rhino 700 2007-2013

Item: P966960
0 Read 0 Reviews Write a Review

Cylinder Works Cylinder Kits are a cost-effective alternative to time-consuming boring, honing and re-plating processes required to remedy worn cylind… Read More

$552.76
$690.95
Save $138.19 20%
Rebate Available! View Details

This product is vehicle specific.
Select a vehicle to ensure fitment.

Looking for a different vehicle? Change vehicle selection

Product Details

This product is legal in California only for racing vehicles which may never be used, registered or licensed for use upon a highway.

Cylinder Works Standard Bore Cylinder Kit Yamaha Grizzly / Rhino 700

Cylinder Works Cylinder Kits are a cost-effective alternative to time-consuming boring, honing and re-plating processes required to remedy worn cylinders. Standard Bore Kits include all new - not remanufactured - OEM replica piston(s), cylinder(s), rings, gaskets and hardware required for installation. Pistons are heat treated, T-5 hardened and tempered replacement units supplied by Vertex. Pistons are an exact replica of the OEM piston that they replace - coming in either cast or forged designs, dependent on factory spec - with molybdenum disulphite skirts. Supplied cylinder sleeves are diamond honed to the exact bore dimension and proper surface finish to ensure  proper ring seal and oil retention. Cylinder Works Standard Bore Kits meet or exceed OEM quality to quickly restore stock horsepower and extended engine longevity.

Specifications:

  • Includes Vertex #23623
  • Compression Ratio 9.2:1
  • Cylinder Diameter 102 mm
  • Cylinder Kit Type: Standard Bore

Features:

  • Standard bore kit includes piston(s), cylinder(s), rings, gaskets and hardware required for assembly
  • Standard compression ratio and bore as stock
  • Replacement cylinder designed in-house by Cylinder Works
  • Diamond honed and nickel silicon carbide (NSC) plated cylinder wall plating for longer life
  • OEM replica piston design in cast or forged design (to match factory hardware)
    • Gravity cast aluminum alloy pistons feature 18% silicone content for extreme lightness
    • Forged pistons are forged from 2618 aluminum for superior strength and durability
  • Piston supplied and manufactured by Vertex (Italy)
  • Piston skirts treated to molybdenum disulphite coating for increased piston life, quicker break-in and reduced running noise
  • Nickel silicon carbide (NSC) cylinder wall plating for longer life
  • New, not remanufactured, cylinders and pistons
  • Gasket hardware supplied by Vertex and manufactured in USA
  • Piston profile optimized by Vertex to match compression ratio, cylinder design and ring spec for each application

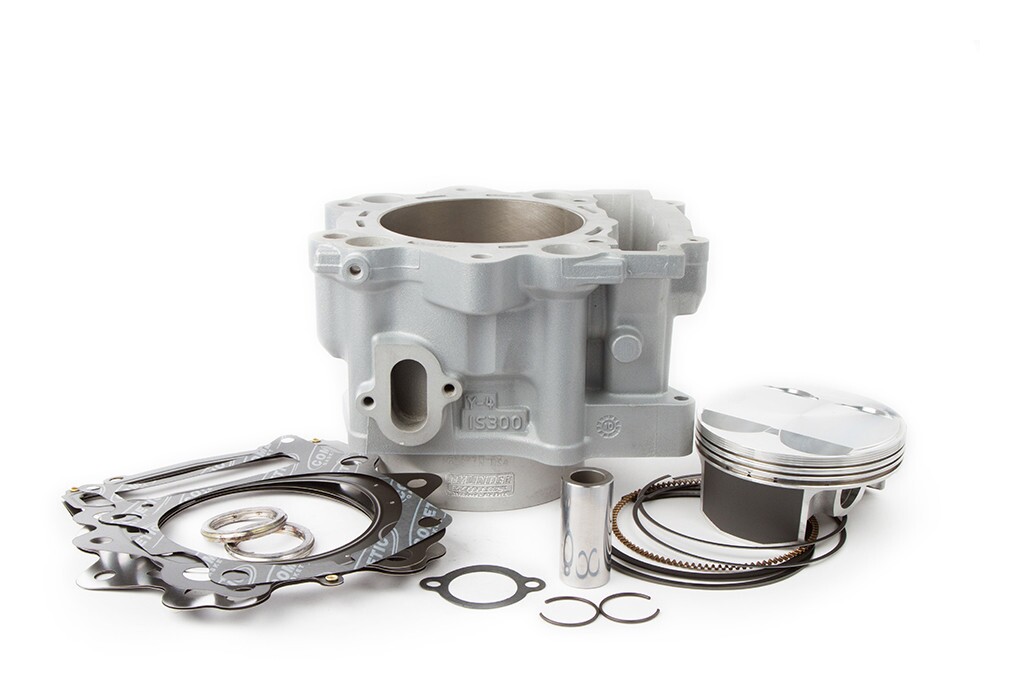

Note: Image for reference only. Kit contents vary with application.

Product Style RevZilla Item # MFR. Product # Availability
Product Style Cylinder Works Standard Bore Cylinder Kit Yamaha Grizzly / Rhino 700 2007-2013 RevZilla Item #10162994 MFR. Product #20104-K01 AvailabilityIn Stock: Ships within 24 hours
This product is vehicle specific.
Select a vehicle to ensure fitment.
This Product Fits
Yamaha
Grizzly 700 2007-2013
Grizzly 700 Ducks Unlimited 2007, 2008
Grizzly 700 EPS 2008-2013
Grizzly 700 EPS Ducks Unlimited 2009
Grizzly 700 EPS Hunter 2008-2013
Grizzly 700 EPS SE 2009, 2010, 2011
Grizzly 700 Hunter 2007-2013
Grizzly 700 Outdoorsman Edition 2007
Grizzly 700 SE 2007, 2008
Rhino 700 2008, 2009, 2011, 2012, 2013
Rhino 700 Ducks Unlimited 2008, 2009
Rhino 700 Hunter 2008, 2009, 2011, 2012, 2013
Rhino 700 SE 2008, 2009
Rhino 700 Sport 2008, 2009, 2011, 2012, 2013
