Factor 55 Flatlink XTV Winch Shackle

Factor 55 Flatlink XTV Winch Shackle

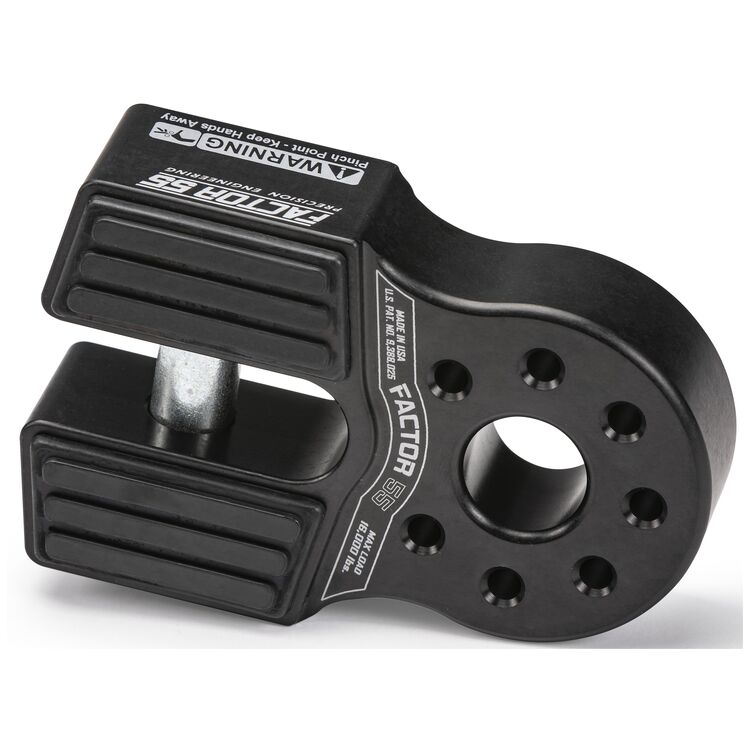

The Flatlink XTV allows UTV and ATV winch owners to replace the conventional winch hook with a safer and stronger shackle/D-Ring. Winch hooks can cut and fray recovery straps and often allow strap ends to escape during typical loose/tight cycles of a winching recovery. Screw pin shackles do not allow strap loops to escape due to the secure screw pin attachment. The Flatlink XTV does not require splicing and is compatible with steel cables or synthetic ropes up to 5/16 inches.

Features:

• Constructed of 6000 series billet aluminum and 6Al-4V titanium
• Anodized/powder coated in 7 different colors
• Cable eye is retained in the Flatlink XTV by a 7/16" diameter titanium double shear pin and internal snap ring
• EPDM Rubber Guard protects alloy fairleads and is securely attached to the Flatlink XTV with 4 barbed tips
• The Flatlink XTV stows neatly against either roller or Hawse type fairleads and is to be used with common standard 1/2" – 5/8" inch shackles
• Max load rating of 8000 pounds
• Failure strength of 28,000 pounds
• Installs in minutes
• Made in USA
