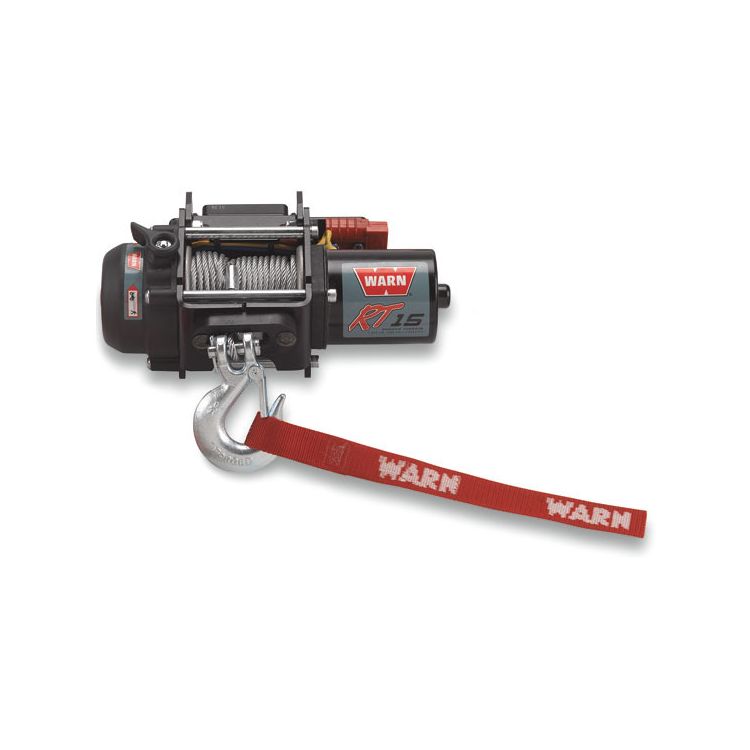

Warn Industries RT15 Portable Winch

The RT15 Portable Winch is a versatile tool for utility work, with a pulling capacity of 1,500 pounds. The winch comes with 25 feet of durable steel wire rope and the hand-held remote control attaches to the winch, making it easy to transfer between vehicles. Use with any 12V battery-equipped vehicle.

Features:

  • Lightweight, portable winch is designed for vehicle self-recovery or utility pulling chores
  • Kit includes everything needed to winch from any battery-equipped vehicle (load strap or tree trunk protector is sold separately)
  • Rigging system allows connection of winch to any vehicle or stable structure. No application-specific mounting hardware is needed
  • Features 1,500 lbs. of pulling capacity, and 25 feet (7.62m) of durable, high-strength wire rope
  • Includes hand-held corded remote, integrated electrical controls, 10-gauge battery leads with quick-connector, and rigging strap. Easily transferable between vehicles
  • Patented disc brake for reliable stopping power
  • Sealed motor provides protection from extreme weather conditions
  • Clutch control provides rope free-spool capability
  • Limited Lifetime Warranty (North America only)

Specifications:

  • Rated line pull: 1,500 lbs. (680 kgs) single-line
  • Motor: 12V DC, .4 hp (.3kW) permanent magnet
  • Control: Corded remote control with 10' (3m) lead
  • Geartrain: 3-Stage Planetary
  • Gear ratio: 103:1
  • Clutch (freespooling): Cam activated
  • Brake: Mechanical brake standard
  • Rope: Wire, 25' of 5/32" diameter (7.6mm, 4mm diam.)
  • Fairlead: Hawse
  • Recommended Battery: 12 amp/hour minimum for winching
  • Battery leads: 10 gauge
  • Duty cycle: Intermittent
  • Finish: Black
  • Weight: 12.5 lbs./5.68 kgs (winch and rope only)

PERFORMANCE DATA PULL BY LAYER
Line Pull
Lbs.(Kgs.)
Line Speed
FT./min(M/min.)
Motor
Current
Pull by layer
layer/Lbs(Kgs.)
0 15 (4.6) 6 amps 1/1500 (680)
500 (227) 11 (3.3) 27 amps 2/1320 (599)
1000 (227) 7 (2.1) 44 amps 3/1162 (527)
1500 (680) 5 (1.5) 65 amps 4/1020 (463)
