Woodcraft Clip-On Risers w/ Adapter Plate Ducati Monster 1100 / 796 / 696
Zoom
  • Woodcraft Clip-On Risers w/ Adapter Plate Ducati Monster 1100 / 796 / 696
  • Woodcraft Clip-On Risers w/ Adapter Plate Ducati Monster 1100 / 796 / 696
  • Woodcraft Clip-On Risers w/ Adapter Plate Ducati Monster 1100 / 796 / 696
  • Woodcraft Clip-On Risers w/ Adapter Plate Ducati Monster 1100 / 796 / 696
  • Woodcraft Clip-On Risers w/ Adapter Plate Ducati Monster 1100 / 796 / 696

Please select a Size to check availability, or to add this item to your Shopping Cart or Wish List.

Color:

Select Size:

Select qty:
MSRP
$239.99 - $249.99
Your Savings (5%):
$12.00
Your Price
$227.99
Please select a Size to view availability.

Woodcraft Clip-On Risers w/ Adapter Plate Ducati Monster 1100 / 796 / 696

Woodcraft has redesigned their exclusive Ducati Monster Adapter Plate to allow for either a rise or drop in your bar position. You now have the option to flip your adapter plate upside down, which results in a more aggressive riding position that improves both traction and feel.

It bolts directly to the stock handlebar mount, keeping all the stock clearances. A 1" drop from stock can be achieved by flipping the standard adapter plate with 1" risers.

Each plate is machined from tough billet aluminum giving your bike a custom look while making them much stronger than the stock handlebars. The handlebar tubes are kept as separate pieces allowing for inexpensive replacement in the event of a crash.

The exclusive design will set your bike apart at the race track or your local bike night.

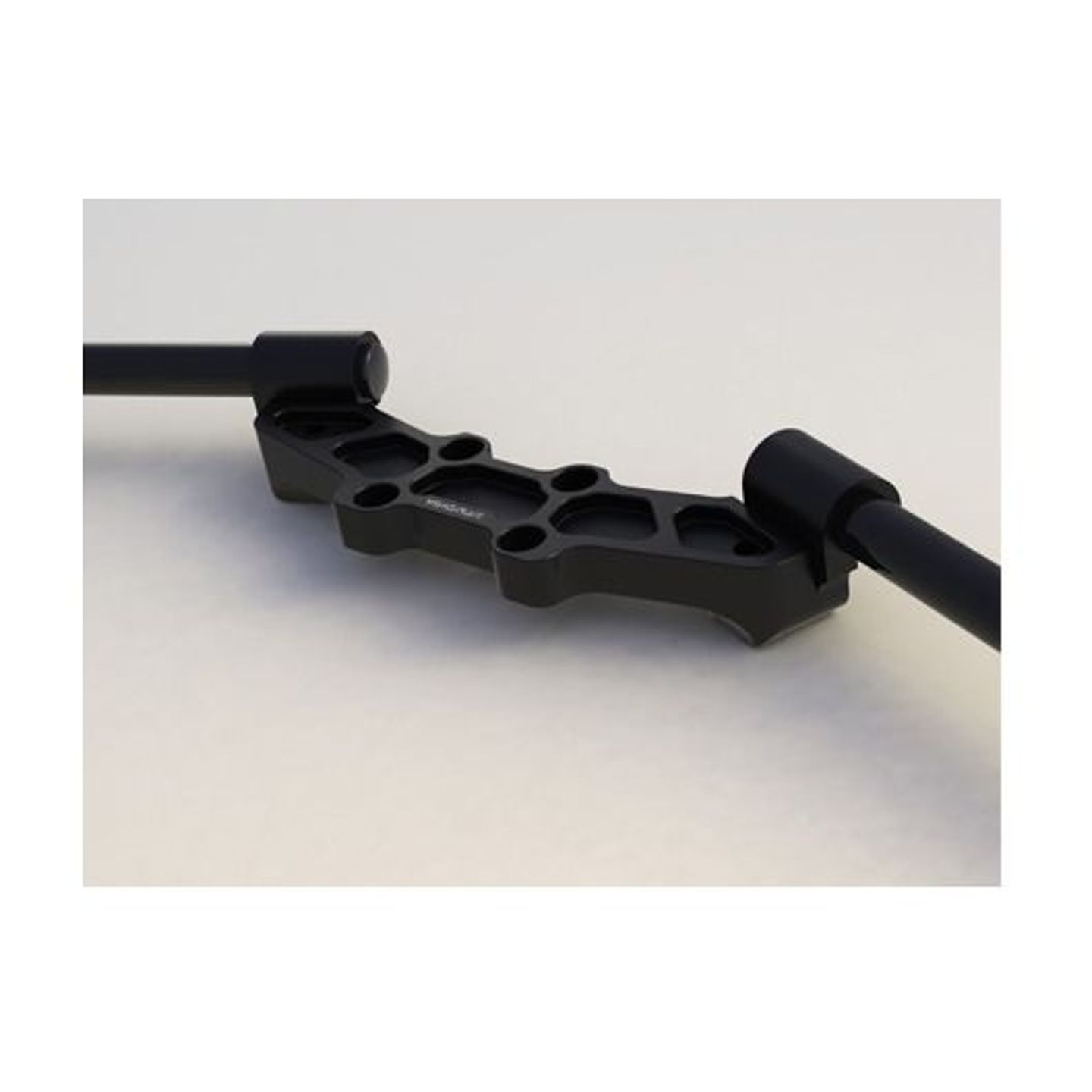

1" Riser Shown.

Includes extra long 13.5" bars.

Resources:

This Product Fits:
Ducati
Monster 1100 2009, 2010
Monster 1100 S 2009, 2010
Monster 696 20082014
Monster 796 2010, 2011, 2012, 2013, 2014
Write a Product Review for a chance to win our monthly $100 giveaways.
Woodcraft Clip-On Risers w/ Adapter Plate Ducati Monster 1100 / 796 / 696 0 5 0 0
0-0 of 0
Use our Product Q&A for a chance to win our monthly $100 giveaways.

Have a functionality, fit, or otherwise product-specific question about the Woodcraft Clip-On Risers w/ Adapter Plate Ducati Monster 1100 / 796 / 696? Ask it here! If you have a customer service or shipping question, please direct it to our Customer Service department.

Woodcraft Clip-On Risers w/ Adapter Plate Ducati Monster 1100 / 796 / 696
Already Asked: 5 Questions, 9 Answers
Sort by:
RevZilla Store asked: Why did you choose this?
John C: These handlebars have the best rating of any other for the 796 and unlike other clipons, you don't need to shave anything off the headlight or from my understanding, even remove the headlight. May 12, 2014
LUIZ VICTOR S: the only option to rise up the handle bar May 6, 2014
Daniel W asked: I'm 6' with very long arms and I intend to install this upside-down. Should I go for risers higher than 1"? Would clearance be an issue? Or is 1" sufficient? I often find myself pushing back into the passenger area of the seat to give myself some room when riding my 696. Oct 21, 2014
Answer this · Send to friends Good question? Yes (0) No (0)
"" ": Hey Daniel, I did some more research on the bars and the 10mm risers, I see the risers are a forward spacer not a heighth riser. I went and purchased them on the woodcraft web site just in case I need them. If you don't pull the trigger on your purchase I'll keep you updated and if I can I'll attach pice of the finished product. Oct 21, 2014
Reply to "" Good answer? Yes (1) No (0)
Daniel W: Good to know. I got the 1" to be cautious, apparently that alone is enough to make a notable difference. It doesn't look as pretty as some other options but I need to keep the original triple because my flyscreen mounts to it and I like running my helmet lock through the riser. Might end up painting the triple black if it isn't too annoying to take of . Oct 21, 2014
Daniel W: Installed the 1" flipped today. More comfortable for my long arms but I wished I'd bought the 1.5" or maybe 2" instead. Think I'll keep the 1" for longer trips. Install was real easy, though it was hard to cram my bar end mirrors into the seemingly narrow bars. Oct 24, 2014
Douglas T: 1" should be fine, even with the extension you end up with a lot of play in the cables. Anything further than 1" I would be weary of to much excess in you cables. Also take into account on extremely sharp turns your controlls may hit the side body work. I would recommend 1". Oct 21, 2014
Reply to Douglas Good answer? Yes (0) No (0)
Daniel W: Thanks, that's exactly what I needed to know! And these clip-ons are also further forward (not just lower) than the stock bar, right? Oct 21, 2014
Justin F: I sent this one back because I didn't like the way it looked. I went with the speedy moto triple tree and clip ons with 2" risers. It sits a lot more aggressive but it's much more responsive when turning and leaning. Oct 21, 2014
Reply to Justin Good answer? Yes (0) No (0)
"" ": I have just purchased these bars for my 696. I have not had a chance to install them yet. Clearence looks to be good with the upside down plate and the 1.5" riser. Oct 21, 2014
Reply to "" Good answer? Yes (0) No (0)
Daniel W: I'm curious about that. The Woodcraft website says you need a separate 10mm spacer for the 1.5" bars to work, which would lift the plate almost half an inch and defeat the purpose of getting the higher riser, right? Oct 21, 2014
"" ": I'm not sure, I may have missed that part when researching it. I plan in installing them this weekend so I guess I'll find out. I will keep it posted if it works or if you need a riser. Oct 21, 2014
A shopper asked: What is the width of the bar that comes together with the riser? I need this information to order bar end mirrors. Nov 21, 2014
Answer this · Send to friends Good question? Yes (0) No (0)
Nelson F: I bought this for my 796 with a 1" riser. I installed it upside down to lower the stance. It lowers it about half an inch from stock. The width is almost identical maybe a 1/4 on an inch less. However that 1/4" means you will need to snug fit all the hardware back on (brake reservoir and so on). Everything works great.. the bike looks better and is a bit more aggressive when riding. I recommend it!!! Nov 25, 2014
Reply to Nelson Good answer? Yes (0) No (0)
A shopper asked: Woodcraft clip-on 3" riser:
For 2010 Ducati Monster 696 ABS, will all original cables long enough without replacing? I really like the taller riser, I have a 1.5" riser, but it is not tall enough.
Thanks.
Sep 4, 2014
Answer this · Send to friends Good question? Yes (0) No (0)
Douglas T: Yes but only if you face the risers down. At 1 inch it's a very tight stretch if they are facing up. So at 1.5 the cables and wires will need to be extended. Drilling will also need to take place to mount the controls (blinker switch, start and stop switch) A paint pin helps for exact mounting. Sep 4, 2014
Reply to Douglas Good answer? Yes (0) No (0)
A shopper asked: How high of a riser can you go and keep all OEM brake lines, clutch/brake lines etc? Thanks May 30, 2014
Answer this · Send to friends Good question? Yes (0) No (0)
John C: I have a 796 and for my 1" bars I inverted them to get a more aggressive feel, but I'd say you could safely do 1.5" based on the give I felt in the cables. Keep in mind also that there are 3 controls with nubs that for you to drill holes in the bar and on on the throttle that has a metal nub that you can't shave down without a metal file. If you have a drill press though, you're golden. May 31, 2014
Reply to John Good answer? Yes (0) No (0)
Product Style RevZilla Item # Manufacturer Product # Availability
Black / 1" Riser 773758 12-1660 In Stock: Ships within 24 hours
Black / 1.5" Riser 830692 12-2660 Available: Usually ships in 3-4 business days
Black / 2" Riser 830694 12-3660 Available: Usually ships in 3-4 business days
Black / 2.5" Riser 946589 12-4660 Available: Usually ships in 3-4 business days
Black / 3" Riser 946590 12-5660 Available: Usually ships in 3-4 business days
