Rowe Electronics PDM60 Power Distribution Module
Zoom
  • Rowe Electronics PDM60 Power Distribution Module
  • Rowe Electronics PDM60 Power Distribution Module
  • Rowe Electronics PDM60 Power Distribution Module
Select qty:
Your Price
$199.99

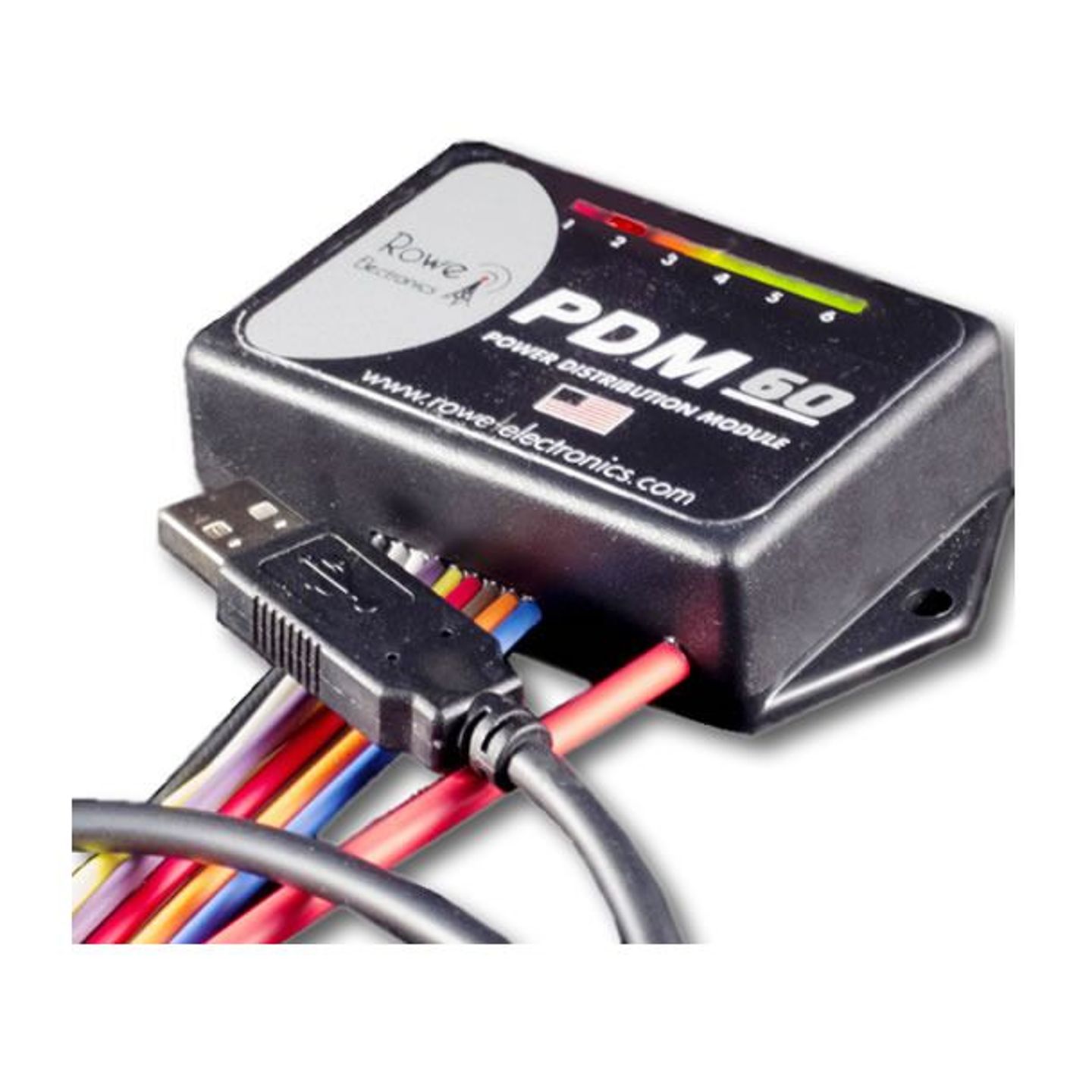

Rowe Electronics PDM60 Power Distribution Module

The PDM60 provides 6 individual circuits, with a total load handling capability of 60 Amps. The unit is designed to connect directly to a primary (12V) power source (vehicle battery), and efficiently power, protect and monitor the supply of power to your electrical/electronic devices.

You are also able to create your own custom configuration, and load it into the PDM60 using a PC/laptop via the programming dashboard and custom programming cable. You’re able to configure individual circuit amperage limits, individual circuit triggering methods, circuit delay activation and delay off settings.

The PDM60 has been built with components selected for superior power management capability, and extended service life. It’s designed with one goal in mind: to provide years and years of superior, hassle free performance. The PDM60 unit is fully encapsulated to protect against rain, dust, humidity, etc. Whether it’s Moto cross, or cross-country via interstate, these units are built to last under the harshest of conditions.

Features:

  • Makes adding or removing aftermarket electrical devices or electronics to your vehicle a breeze
  • Offers six power circuits to handle your favorite gadgets and accessories
  • Simple to install, simple to use
  • Connects directly to your vehicle's battery
  • Super bright LED indicators on the PDM60 keep you informed of the status of each circuit
  • Eliminates the need to check and replace fuses or install relays to power high amperage applications
  • Plain and simple, with the PDM60 module your bike will be better equipped

Resources:

View Fitment Notes & Exceptions

Fitment Notes & Exceptions

This is a universal fit part; it may or may not fit without modification.

  • The PDM60 ships with a stock power configuration from the factory and can be used out of the box without any additional programming
  • A Windows compatible PC with .NET Framework 4 installed is required to configure and customize your load settings, if desired
Use our Product Q&A for a chance to win our monthly $100 giveaways.

Have a functionality, fit, or otherwise product-specific question about the Rowe Electronics PDM60 Power Distribution Module? Ask it here! If you have a customer service or shipping question, please direct it to our Customer Service department.

Rowe Electronics PDM60 Power Distribution Module
Already Asked: 5 Questions, 15 Answers
Sort by:
RevZilla Store asked: Why did you choose this?
Lindsay M: Chose this after online recommendations and if there is a wiring fault you don't have to keep changing fuses until the fault is found. Apr 12, 2014
Robert C: I want to add additional lighting and other power related items on my 2012 Concours. I hope this will be a better way of wiring items into the system. Mar 9, 2014
Rick H: Setting up my new Triumph Trophy with extra power toys and want to run all 'outside' the power system of the bike... great way to have a second electrical bus on the bike isolating the bike electric functions form extras. Mar 8, 2014
John L: Excellent reviews, programmable, no fuses, waterproof, small, common ground. Mar 4, 2014
Shanon M: Was what I was looking for in a fuse block. Jan 11, 2014
M I: I'm accumulating accessory items for a '14 BMW R1200 GSA that will be here sometime in the Spring. The Rowe module appears to be a very simple installation without having to add the wiring for a separate relay. Everything is built in and I appreciate the simplicity. Dec 26, 2013
Ben D: Will be adding some electrical farkles to my beamer bike and this product comes highly recommended on my online forum, is CAN-Bus compatible and can handle significant loads. Dec 17, 2013
Simon D: web reviews Nov 12, 2013
A shopper asked: Does the PDM60 come with the USB cable to program it via a windows compatible computer or do I have to order that extra? Oct 1, 2013
Answer this · Send to friends Good question? Yes (2) No (0)
Brian S: It does come with the necessary cable. The connection to the unit is unique to this product. Nov 20, 2013
Reply to Brian Good answer? Yes (0) No (0)
Shanon M: Yes. Oct 29, 2013
Reply to Shanon Good answer? Yes (0) No (1)
Pal A asked: Hi I have just bought PDM60 Power Distribution Module, Yesterday I schould mount it. And did not understand why it is two Thin groundcables. ? Shall I mount both of them to the frame/batt- And the short black one with a cap on.. ? where ??
Pål
Feb 26, 2014
Answer this · Send to friends Good question? Yes (0) No (0)
Francis B D: 1. I mount mine under the seat close to the battery but were ever you can find room to mount it is fine its water proof.
2. You should have gotten a short black wire with two female ends on it that is to be hooked on the ground side of the battery (-). all the returning grounds coming from accessories hook to it and there a black rubber boot that is used to insulate the exposed wire.
3. The thin Black wire is used for an off/on switch. (toggle switch. other wise it doesn't have to be hooked.
4. The Gray wire marked trigger wire: I suggest hooking it to the positive wire going to your tail light or any other that powers up when the ignition is turned on . This will power up the PMD60 when you turn on the ignition. It comes programed to delay powering PDM60 for 7 seconds after the ignition is turned on.
5. The large RED wire goes to the Positive side of the battery.
6. You have 6 circuits coming off the PDM60 and each wire will be considered the Positive wire. The returning Negative (-) Black wire goes to the short Black wire that you hooked to the - side of the battery.
7. Any wires that are not used you can Deactivate with the computer program that is on their ..rowe-eletronics
Hope this helps if you have anymore questions just me another text.
Feb 26, 2014
Reply to Francis B Good answer? Yes (1) No (0)
Pal A: Thank You Francis, great help to a Norwegian :) I'll try this :)
Pal Feb 26, 2014
Pal A: Hello again Francis. I try to connect the pdm to my pc. but it cant find it. What do I do ??? I have a pc with windows 8 and mcafee... Mar 3, 2014
JAMES D: The blue is a ground for the trigger. The black is the main ground for the PDM. What you should do is take the thick black cable and up it to the negative on the battery. This will be your ground buss and then add the black and blue cable to it and all other grounds. Make sure you make all the other curicuits inactive before tucking them away. Any other questions let me know. Feb 26, 2014
Reply to JAMES Good answer? Yes (1) No (0)
Douglas K: I purchased gear and had it sent to Australia as having a new bike shipped up to me in Mongolia for this season, will mount the PDM when it arrives to run some lights, gps etc. The website if you google Rowe Electronics will give you a link for the PDM60 and has good information as shifted from the actual Rowe Electronics website - cheers Mar 3, 2014
Reply to Douglas Good answer? Yes (0) No (0)
Pal A asked: I have connected my PDM and the program on my PC show that I have done it the right way. I have inactivated som of the citcuits but there is still 12V in them... What have I done wrong??
Or is it something wrong with my unit??
Mar 3, 2014
Answer this · Send to friends Good question? Yes (0) No (0)
Shanon M: Hi Pal A,

This is a question that is probably best directed to the good folks at Rowe Electronics. They have a great support team that I'm sure can help you out with trouble-shooting.
Mar 6, 2014
Reply to Shanon Good answer? Yes (0) No (0)
A shopper asked: Is there any provision for battery charging through the unit or do you have to hook up directly to the battery? Nov 20, 2013
Answer this · Send to friends Good question? Yes (0) No (0)
Brian S: No. There is no provision within the unit for battery charging. I still use a separate connection for battery charging. Nov 20, 2013
Reply to Brian Good answer? Yes (0) No (0)
Product Style RevZilla SKU ID Manufacturer Product # Availability
Rowe Electronics PDM60 Power Distribution Module 923996 ROWE-0-3100 In Stock: Ships next business day
