Akrapovic is proud to introduce a stunning Racing Line exhaust for the Yamaha FZ-09. The FZ-09 is a bike with a strong focus on riding emotion and represents a new direction in sport-bike evolution. A bike designed to give homage to the darker and unconventional side of Japanese society can now be made even more mean, moody and exciting with the addition of Akrapovic's offering.

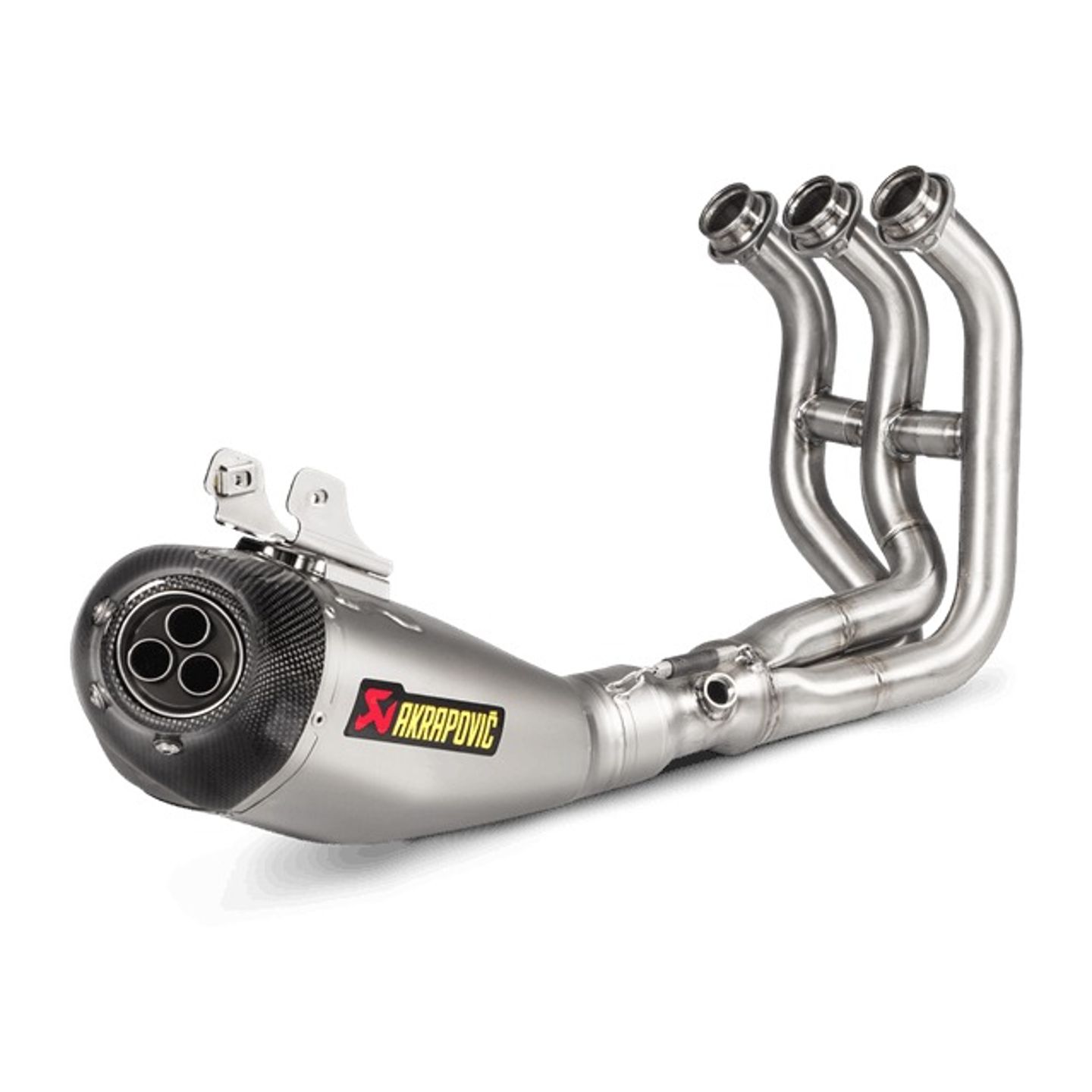

The Akrapovic Racing Titanium system is constructed from high quality stainless steel with a titanium alloy outer sleeve on the muffler body. A ‘slash-cut’ outlet section has been designed to retain the narrow lines of the FZ-09 and has a removable baffle plate, which features three stylish exit ports. Peak power gain of 5.4HP at 9900 rpm and peak torque of 3.9lb-ft at 5000 rpm. Increased power-to-weight ratio with weight reduction of 5.3 lb compared to stock exhaust.
The Akrapovic Racing Carbon Fiber system, with its striking carbon fiber outer-sleeve and stainless steel headers, suits the naked design of the Yamaha bike and this exhaust will certainly bring the best out of the high-torque 3-cylinder engine that beats inside the heart of the Yamaha. Producing an extra 4.7lb-ft of torque at 5,150 rpms and increased power output of 6.8HP, the Racing Line (Carbon) will produce powerful and thrilling performance in everyday conditions, as well as help to improve the overall experience of the machine thanks to a weight saving 8.4lb from the original system!
The Akrapovic Racing Line has been designed specifically for demanding riders and represents an ideal balance between price and performance. The exhaust systems are dramatically lighter compared to stock exhaust systems and feature exceptional production quality and increased engine performance combined with pure racing sound output. The headers and mid-pipes are constructed of high-quality stainless steel conical tubes with precision handcrafting. A special process known as hydroforming is used in the manufacturing of the exhaust pipes. This process injects pressurized water into each tube to form the ideal shape for optimum exhaust flow without causing creases or compromising the strength of the steel.
Akrapovic Exhaust’s unique design enables them to obtain the maximum output for each specific model of motorcycle, while significantly reducing overall weight. It’s not just about peak power - Akrapovic exhaust systems deliver increased performance throughout the entire RPM range. Increased power and torque result in a much smoother ride. All Akrapovic exhaust system measurements are formulated on in-house computer-controlled flow benches.
The Racing Line is identical to Akrapovic’s top range Evolution Line exhaust systems, with the major difference being the material that is used for the headers and mid-pipes. The headers and mid-pipes of the Evolution Line are constructed exclusively of titanium while the Racing Line uses stainless steel.
|Unit||Stock Exhaust||Akrapovic||Max Gain|
|Maximum Power||kW||82.2 at 9900 rpm||86.2 at 9900 rpm||+ 4 at 9900 rpm|
|HP (m)||111.8 at 9900 rpm||117.2 at 9900 rpm||+ 5.4 at 9900 rpm|
|HP (i)||110.3 at 9900 rpm||115.6 at 9900 rpm||+ 5.3 at 9900 rpm|
|Maximum Torque||Nm||87.7 at 8400 rpm||89.9 at 8750 rpm||+ 5.3 at 5000 rpm|
|lb-ft||64.7 at 8400 rpm||66.3 at 8750 rpm||+ 3.9 at 5000 rpm|
Measured on: Yamaha FZ-09 2014 w/ Akrapovic Titanium Exhaust
|Unit||Stock Exhaust||Akrapovic||Max Gain|
|Maximum Power||kW||82.7 at 9900 rpm||87.7 at 9850 rpm||+ 5.1 at 9850 rpm|
|HP (m)||112.4 at 9900 rpm||119.3 at 9850 rpm||+ 6.9 at 9850 rpm|
|HP (i)||110.9 at 9900 rpm||117.7 at 9850 rpm||+ 6.8 at 9850 rpm|
|Maximum Torque||Nm||88.3 at 8400 rpm||91.9 at 8250 rpm||+ 6.4 at 5150 rpm|
|lb-ft||65.1 at 8400 rpm||67.8 at 8250 rpm||+ 4.7 at 5150 rpm|
|Static Noise Level||dB||94 at 5000 rpm||102.5 at 5000 rpm||+ 8.5|
Measured on: Yamaha FZ-09 2014 w/ Akrapovic Carbon Fiber Exhaust
|Product Style||RevZilla Item #||Manufacturer Product #||Availability|
|Titanium||939621||S-Y9R3-HAFT||In Stock: Ships within 24 hours|
|Carbon Fiber||950555||S-Y9R2-AFC||In Stock: Ships within 24 hours|
